Ohlins TTX GP Rear Shock YA469 – Yamaha YZF-R6 '06-20

Suspension / OHLINS

Share

$1,648.90

DAL: 0 HOU: 0 WEB: 10

Quantity:

123 Add To Cart

Earn $82.44 in UBD Bucks

We ship nationwide!

Questions?
Speak to one of our experts today:
469-890-0123

Brand:

OHLINS

SKU:

1310-1865

Description:

Ohlins TTX GP Rear Shock YA469 – Yamaha YZF-R6 ’06–20

Product Overview

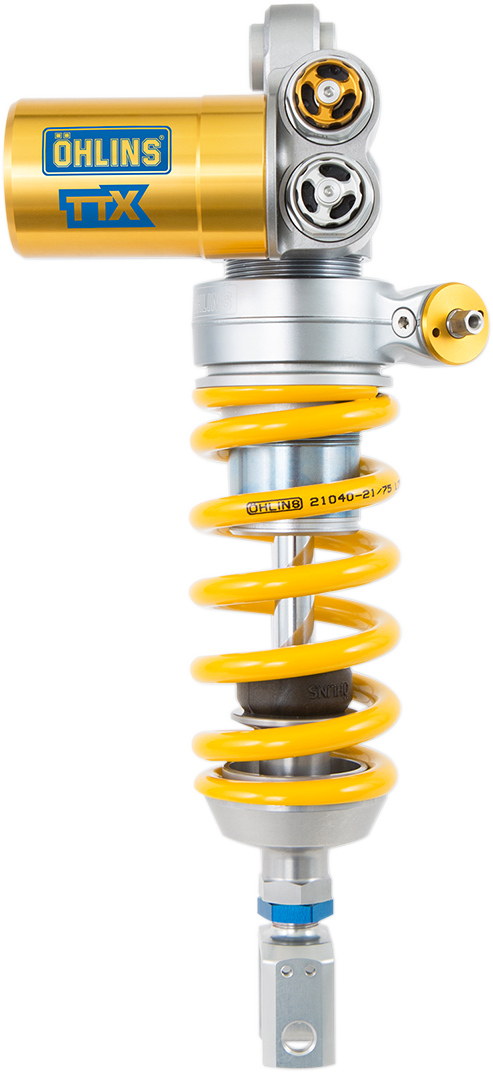

This is the Öhlins TTX GP rear shock absorber, part number YA 469 (type T36PR1C1LB), for the 2006–2020 Yamaha YZF-R6. It is a gas-charged, twin-tube coilover shock with a piggyback reservoir, developed from Öhlins’ MotoGP work and based on its TTX technology. TTX keeps pressure balanced in the shock, which gives consistent damping and removes the risk of cavitation. Compression and rebound damping are adjusted separately, and this version has an integrated hydraulic preload adjuster.

Key Technology & Design

• Twin-tube TTX design — The twin-tube layout separates rebound and compression inside the shock, with no risk of cavitation.
• Separate damping adjustment — Compression and rebound settings are completely separate, with a wider adjustment range, and both can be set by hand or with a hex key.
• Integrated hydraulic preload and length — Spring preload is adjusted hydraulically, and the shock length is adjustable.

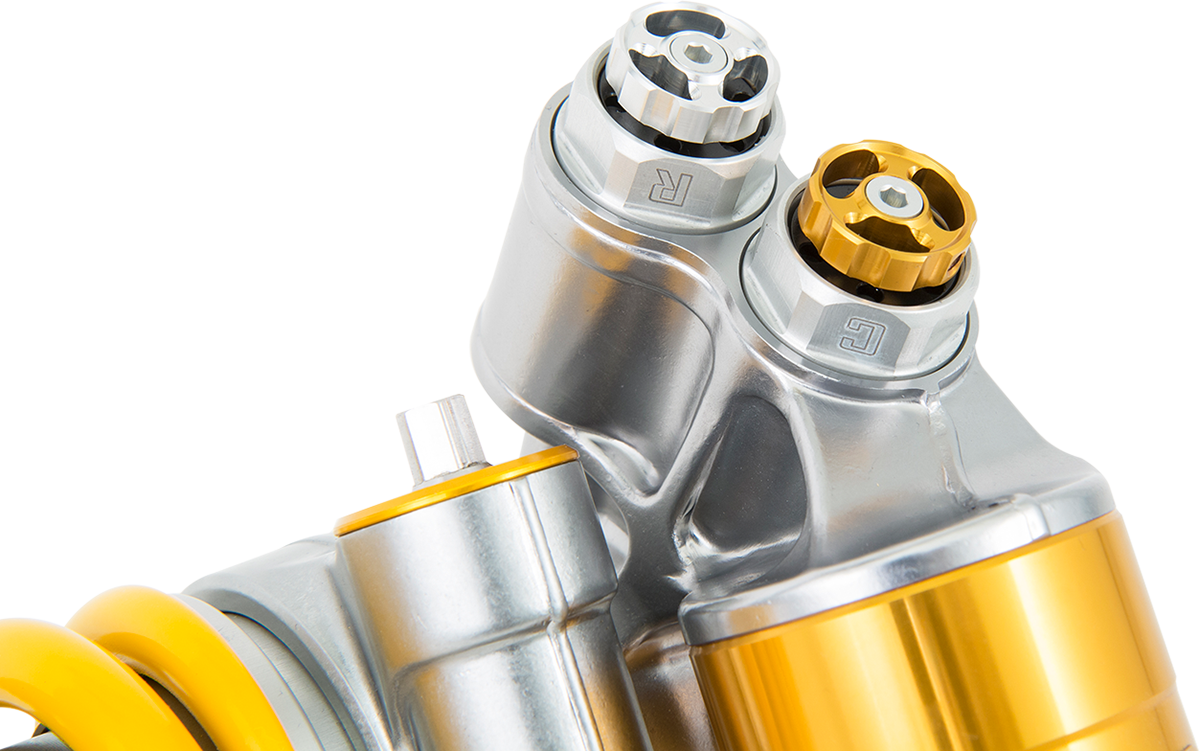

• New needle profiles — The compression and rebound adjusters use new needle profiles, and the updated design improves oil flow guidance and volume control for more precise damping and finer tuning.
• 36 mm piston — The 36 mm primary piston was redesigned to improve traction and feel on the motorcycle.
• Stiffer tubes and coated valves — Stiffer tubes reduce suspension flex, and a special surface coating on the shock valves improves chassis feedback and damping consistency.
• Serviceable build — Hard-anodized, precision CNC-machined components and a low-friction shaft and seal head design; the shock is fully serviceable and repairable.

Specs

Type	Coilover twin-tube rear shock absorber, gas charged
Model	Öhlins TTX GP, type T36PR1C1LB
Adjustment	Compression damping, rebound damping, hydraulic spring preload, length
Piston diameter	36 mm
Bore	1.42 in
Extended length	11.55 in
Linear spring rate	514.06 lb/in
Reservoir	Piggyback
Material	Steel
Color / finish	Yellow / chrome
Mounting position	Rear
Sold as	Each
Manufacturer part number	YA 469

Fitment

Year(s) — Make / Model

2006–2020

Yamaha YZF-R6

California Prop 65: this product can expose you to chemicals including nickel. See www.p65warnings.ca.gov.
