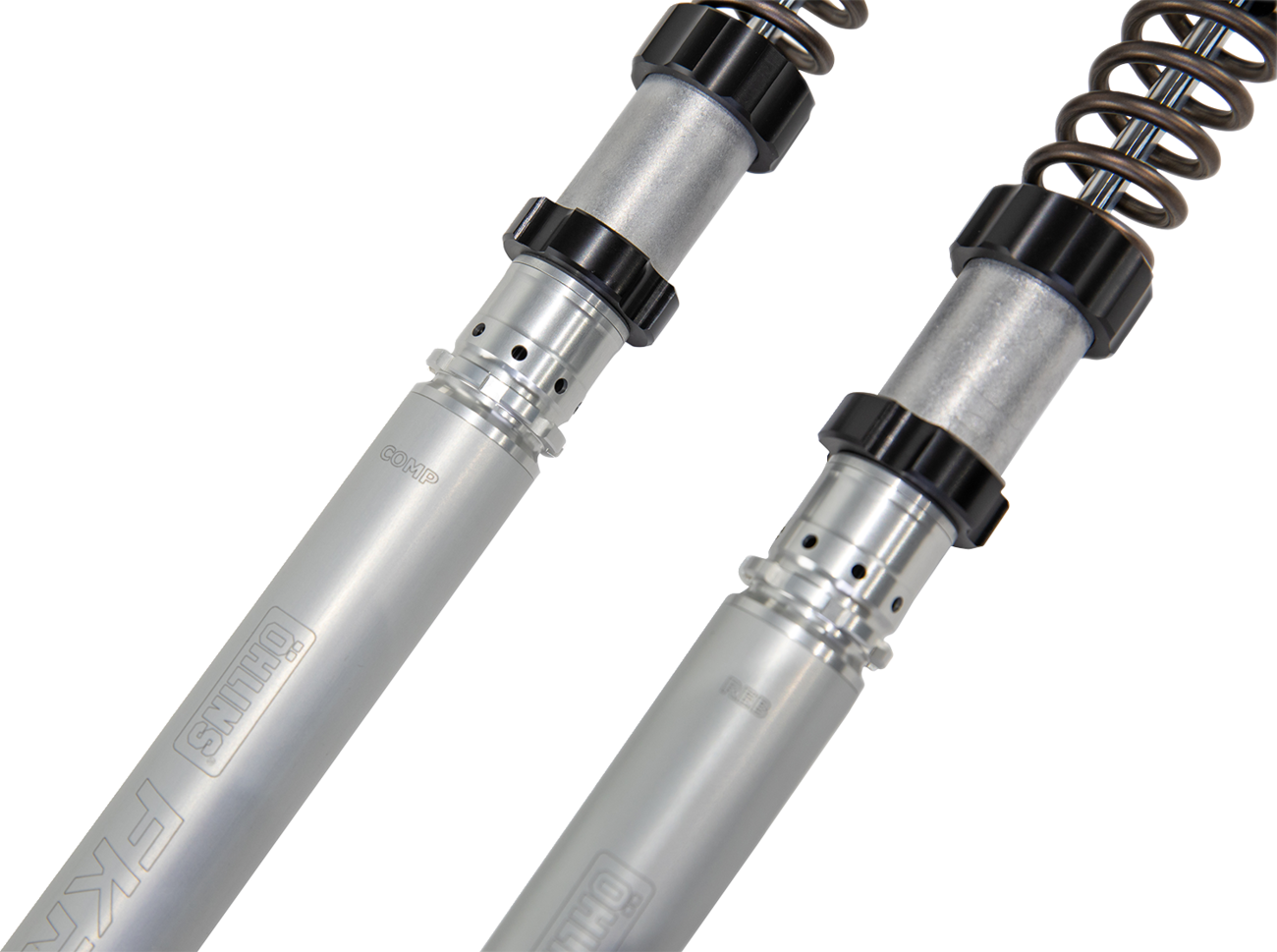

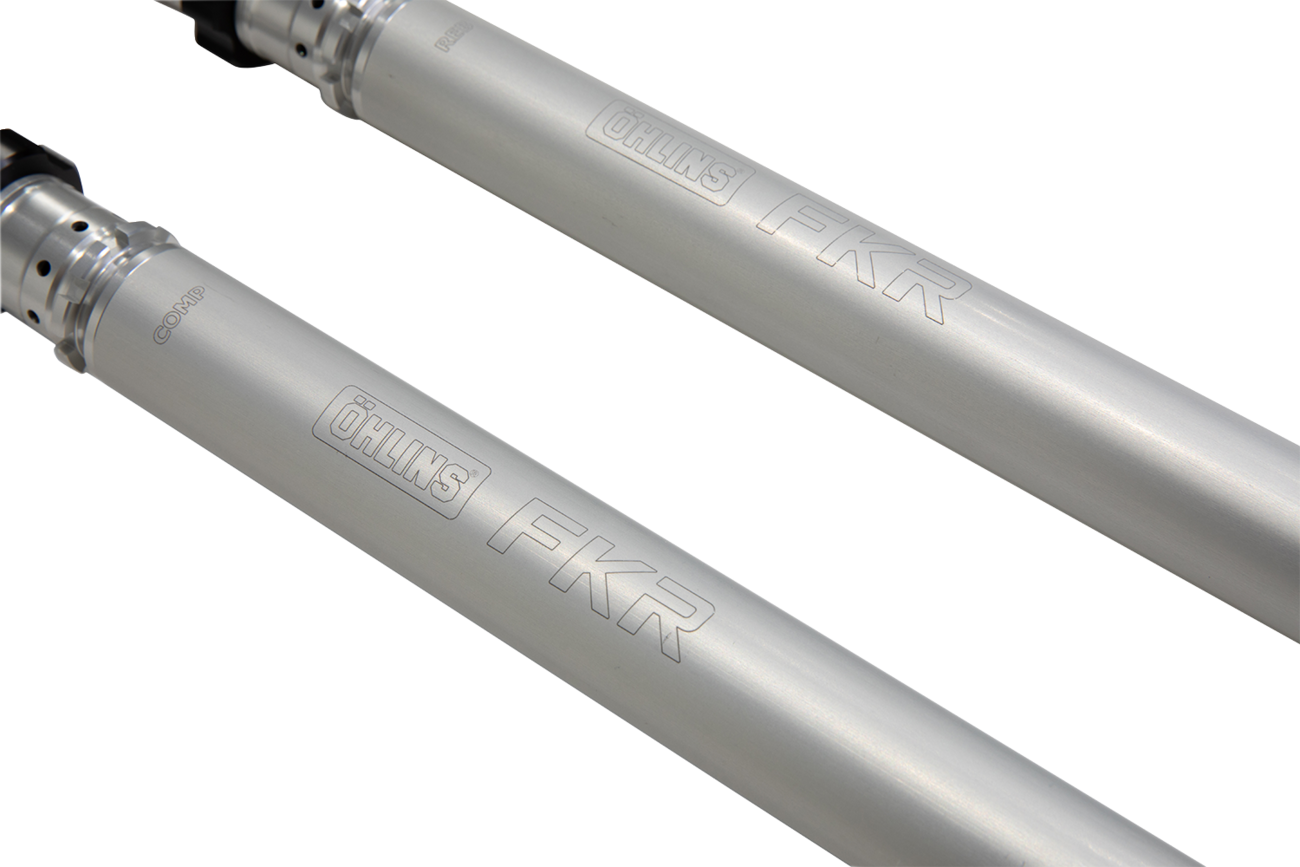

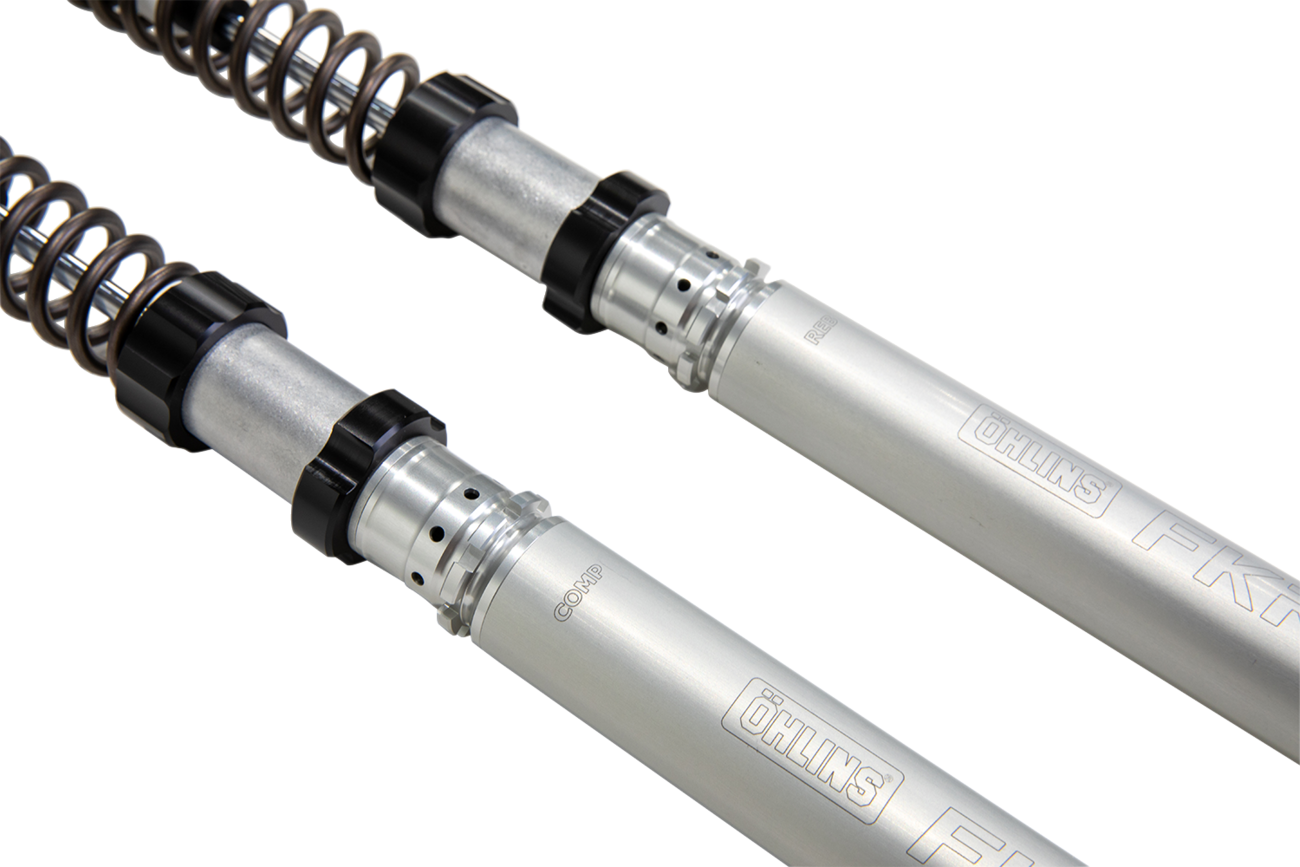

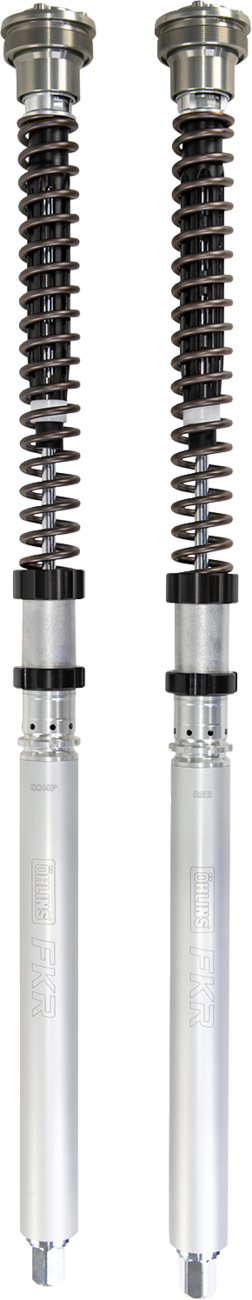

Ohlins FKR 228 Fork Cartridge Kit – Honda CBR600RR '21-26

Suspension / OHLINS

Share

$2,499.00

DAL: 0 HOU: 0 WEB: 3

Quantity:

123 Add To Cart

Earn $124.95 in UBD Bucks

We ship nationwide!

Questions?
Speak to one of our experts today:
469-890-0123

Brand:

OHLINS

SKU:

0413-0224

Description:

Ohlins FKR 228 Fork Cartridge Kit – Honda CBR600RR ’21–26

Product Overview

The Öhlins FKR 228 is a Supersport TTX 25 fork cartridge kit for the Honda CBR600RR with the Showa fork. FKR Supersport cartridge kits use technology derived from Moto2, Moto3 and World Superbike racing, and the FKR 200 series adds track-ready updates on TTX technology. The kit has race-tuned settings with increased rebound damping, comes with three spring rates, and includes components to set the stroke to 130 mm. It replaces FKR 128.

Key Technology & Design

• TTX 25 Damping — The cartridges use TTX technology with Öhlins 1309 oil.
• Race-Tuned Settings — The settings are race tuned, with increased rebound damping.
• MotoGP-Inspired Top Cap — A new top cap design inspired by MotoGP.
• Preload Adjustment — The preload adjusters give click feedback every half turn.
• Magnetic Guide Rings — Magnetic guide rings lift the preload tube out as the spring is removed, which simplifies setup.
• Lighter Guide Sleeves — MotoGP-style guide sleeves are lighter and reduce weight on the front end.

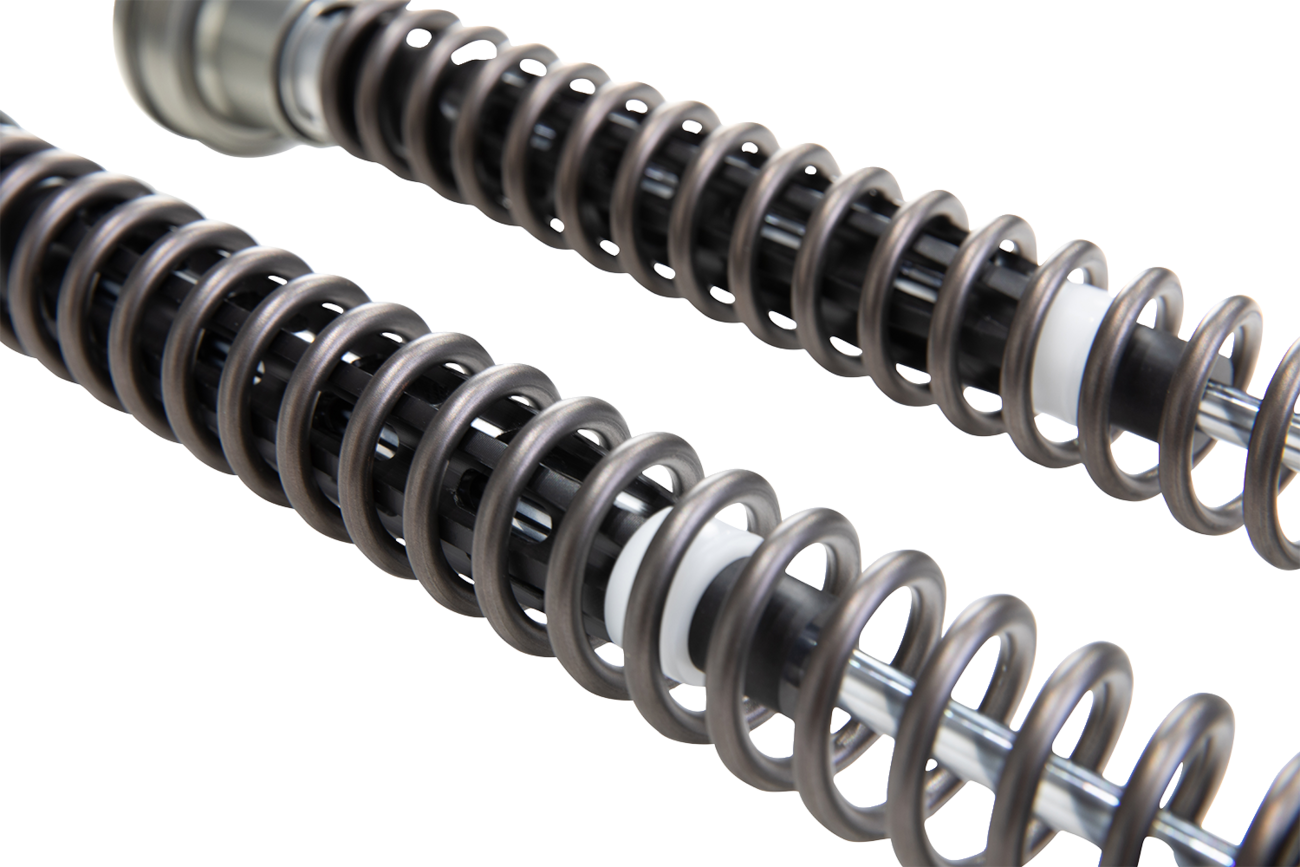

• Three Spring Rates — The kit comes with 9.5, 10 and 10.5 N/mm springs, and a new sticker set is included.

Specs

Type	Fork cartridge kit
Damping technology	TTX 25
Fork	Showa
Length	732 mm
Oil	Öhlins 1309
Springs	3 spring rates: 9.5, 10 and 10.5 N/mm
Stroke	120 mm
Stroke adjustment	Includes components to adjust stroke to 130 mm
TÜV	No
Replaces	FKR 128
Manufacturer part number	FKR 228

Fitment

Year(s) — Make / Model

2021–2026

Honda CBR600RR

California Prop 65: this product can expose you to chemicals including nickel. See www.p65warnings.ca.gov.
