Suspension
- TTX 25 Cartridge — The kit is built on Öhlins TTX technology.
- MotoGP-Inspired Top Cap — A new top cap design inspired by MotoGP.
- Half-Turn Preload Clicks — The preload adjuster gives click feedback every half turn.
- Magnetic Guide Rings — Magnetic guide rings lift the preload tube out as you remove the spring.
- Race-Tuned Settings — Increased rebound damping is built into the settings.
- Lighter Guide Sleeves — MotoGP-style guide sleeves reduce weight.
- Stroke Adjustment — The kit includes components to adjust the stroke to 130 mm, and a new sticker set.
Specs
| Type | Fork cartridge kit |
| Damper technology | TTX 25 |
| Fork type | Showa |
| Length | 707.5 mm |
| Stroke | 120 mm |
| Stroke adjustment | Includes components to adjust stroke to 130 mm |
| Springs | Three rates included: 9.5, 10 and 10.5 N/mm |
| Oil | Öhlins 1309 |
| Replaces | FKR 105 |
| Manufacturer part number | FKR 205 |
Fitment
Year(s) — Make / Model
| 2016–2026 | Kawasaki Ninja ZX-10R |
| 2018–2019 | Kawasaki Ninja ZX-10RR |
| 2021 | Kawasaki Ninja ZX-10RR |
| 2023–2026 | Kawasaki Ninja ZX-10RR |
| 2017–2025 | Suzuki GSX-R1000R |
California Prop 65: this product can expose you to chemicals including nickel. See www.p65warnings.ca.gov.
" ["features"]=> string(0) "" ["specifications"]=> string(0) "" ["inventoryInfo"]=> string(0) "" ["warehouseFulfillment"]=> bool(true) ["loyaltyRewardAmount"]=> float(124.95) ["productID"]=> int(969) ["category"]=> string(5) "10015" ["categoryName"]=> string(10) "Suspension" ["categoryObj"]=> array(10) { ["categoryID"]=> int(10015) ["parentID"]=> int(9991) ["name"]=> string(10) "Suspension" ["slug"]=> string(10) "suspension" ["children"]=> array(0) { } ["metaTitle"]=> string(0) "" ["metaDescription"]=> string(0) "" ["metaKeywords"]=> string(0) "" ["fitmentOverride"]=> bool(false) ["fitmentOverrideDescription"]=> string(0) "" } ["brand"]=> string(6) "OHLINS" ["name"]=> string(71) "Ohlins FKR 205 Fork Cartridge Kit - Kawasaki ZX-10R / Suzuki GSX-R1000R" ["sku"]=> string(9) "0413-0220" ["slug"]=> string(65) "ohlins-fkr-205-fork-cartridge-kit-kawasaki-zx10r-suzuki-gsxr1000r" ["price"]=> float(2499) ["salePrice"]=> NULL ["isClearance"]=> bool(false) ["weight"]=> float(156) ["excludeFromLoyalty"]=> bool(false) ["images"]=> array(6) { [0]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/34d3aa02-f000-438c-814f-26aeb819db6b.png" ["name"]=> string(11) "img_0_0.png" ["sortOrder"]=> int(1) } [1]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/2e1f08df-09a2-4f99-a41a-4e1f45d381a6.png" ["name"]=> string(11) "img_0_1.png" ["sortOrder"]=> int(2) } [2]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/871f0fb1-d33a-4b6e-a8f2-fcb7e17b33c3.png" ["name"]=> string(11) "img_0_2.png" ["sortOrder"]=> int(3) } [3]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/76eb3aaa-0550-42cb-a810-d96f3d913d82.png" ["name"]=> string(11) "img_0_3.png" ["sortOrder"]=> int(4) } [4]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/c44ad02b-8479-417c-b6c0-4cc6daada909.png" ["name"]=> string(11) "img_0_4.png" ["sortOrder"]=> int(5) } [5]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/32e1a948-4842-456c-88a8-25749a69af7c.png" ["name"]=> string(11) "img_0_5.png" ["sortOrder"]=> int(6) } } ["tag"]=> string(0) "" ["inventoryTag"]=> string(23) "DAL: 0 HOU: 0 WEB: 6" ["colorVariant"]=> NULL ["featured"]=> bool(false) } ["hasData"]=> bool(true) ["count"]=> int(1) ["isError"]=> bool(false) ["isWarning"]=> bool(false) ["errors"]=> array(0) { } ["warnings"]=> array(0) { } ["hasErrors"]=> bool(false) ["hasWarnings"]=> bool(false) ["message"]=> string(7) "Success" }Ohlins FKR 205 Fork Cartridge Kit – Kawasaki ZX-10R / Suzuki GSX-R1000R
Quantity:
Earn $124.95 in UBD Bucks
We ship nationwide!
Questions?
Speak to one of our experts today:
469-890-0123
Speak to one of our experts today:
469-890-0123
Brand:
OHLINS
SKU:0413-0220
Description:Ohlins FKR 205 Fork Cartridge Kit – Kawasaki ZX-10R / Suzuki GSX-R1000R
Product Overview

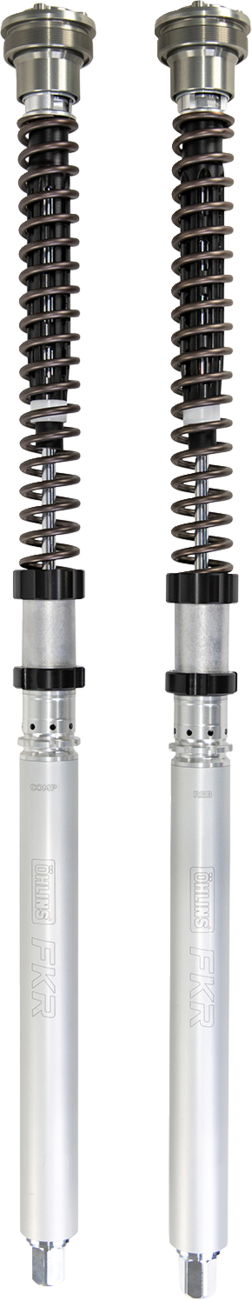

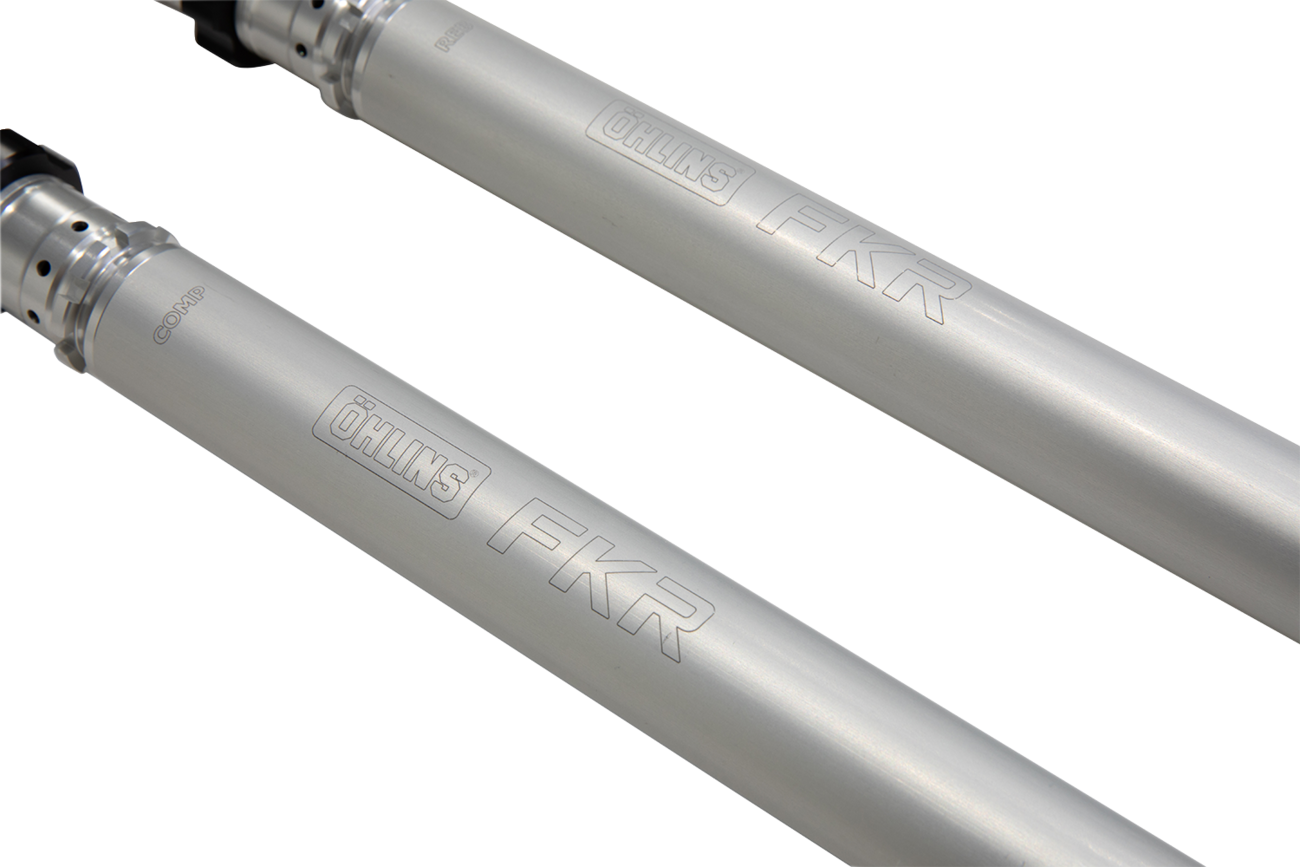

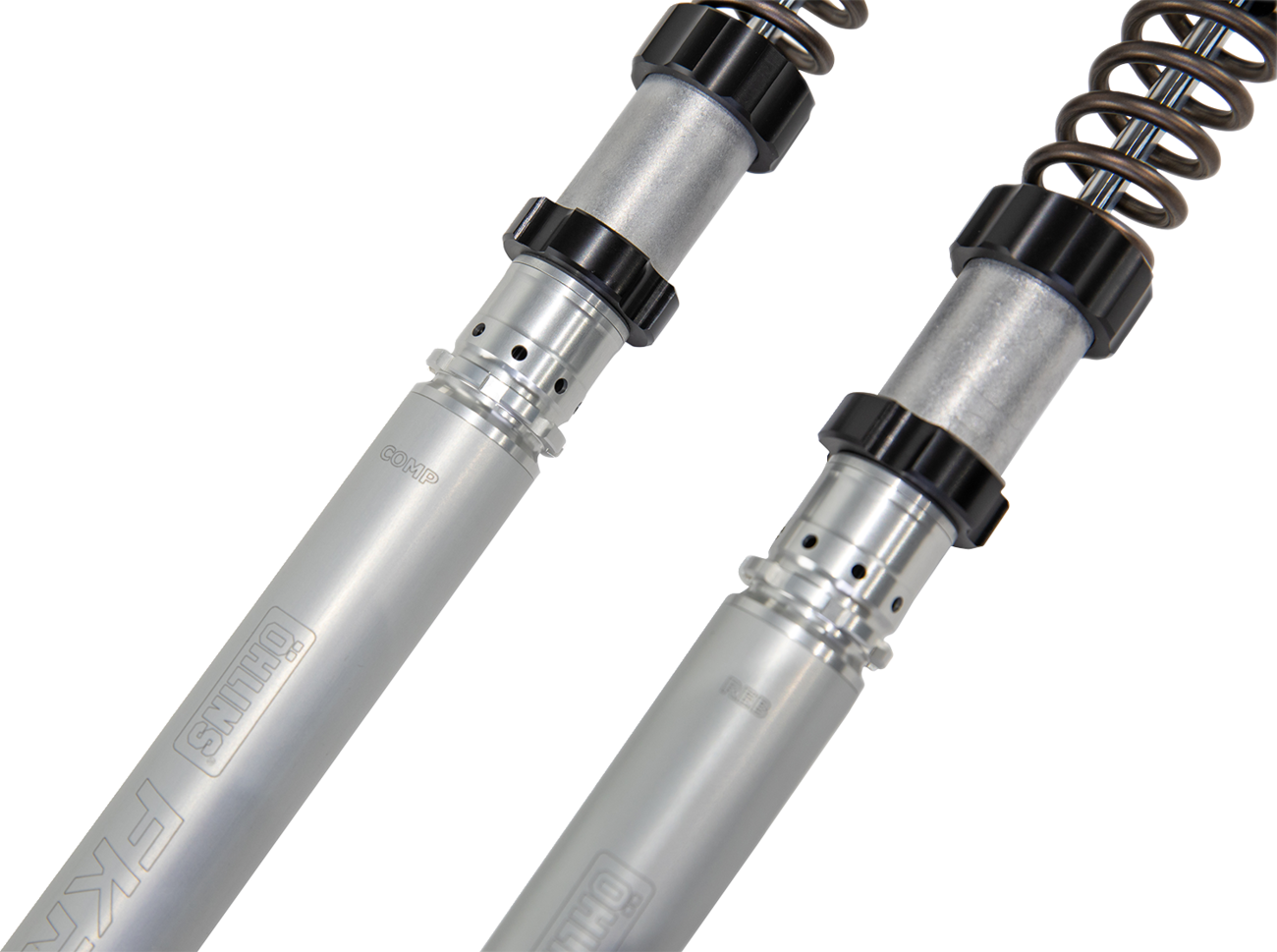

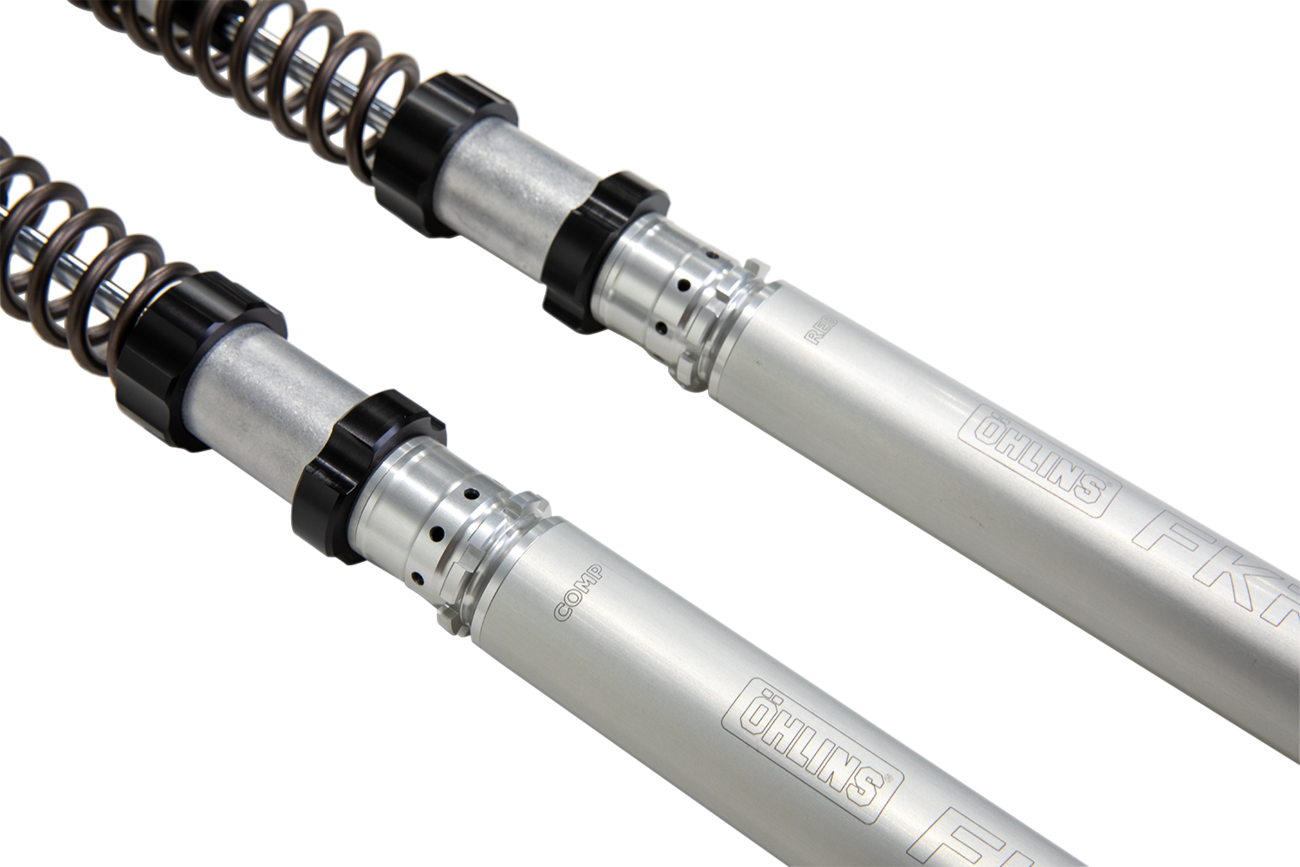

The Öhlins FKR 205 is a TTX 25 fork cartridge kit for the Showa fork on the Kawasaki Ninja ZX-10R and ZX-10RR and the Suzuki GSX-R1000R. It replaces Öhlins kit FKR 105. FKR Supersport cartridge kits use technology derived from Moto2, Moto3 and World Superbike racing and were developed for SuperStock and SuperSport racing classes. The race-tuned settings increase rebound damping, and the kit comes with three spring rates so the fork can be set up for the rider.
Key Technology & Design
- TTX 25 Cartridge — The kit is built on Öhlins TTX technology.
- MotoGP-Inspired Top Cap — A new top cap design inspired by MotoGP.
- Half-Turn Preload Clicks — The preload adjuster gives click feedback every half turn.
- Magnetic Guide Rings — Magnetic guide rings lift the preload tube out as you remove the spring.
- Race-Tuned Settings — Increased rebound damping is built into the settings.
- Lighter Guide Sleeves — MotoGP-style guide sleeves reduce weight.
- Stroke Adjustment — The kit includes components to adjust the stroke to 130 mm, and a new sticker set.
Specs
| Type | Fork cartridge kit |
| Damper technology | TTX 25 |
| Fork type | Showa |
| Length | 707.5 mm |
| Stroke | 120 mm |
| Stroke adjustment | Includes components to adjust stroke to 130 mm |

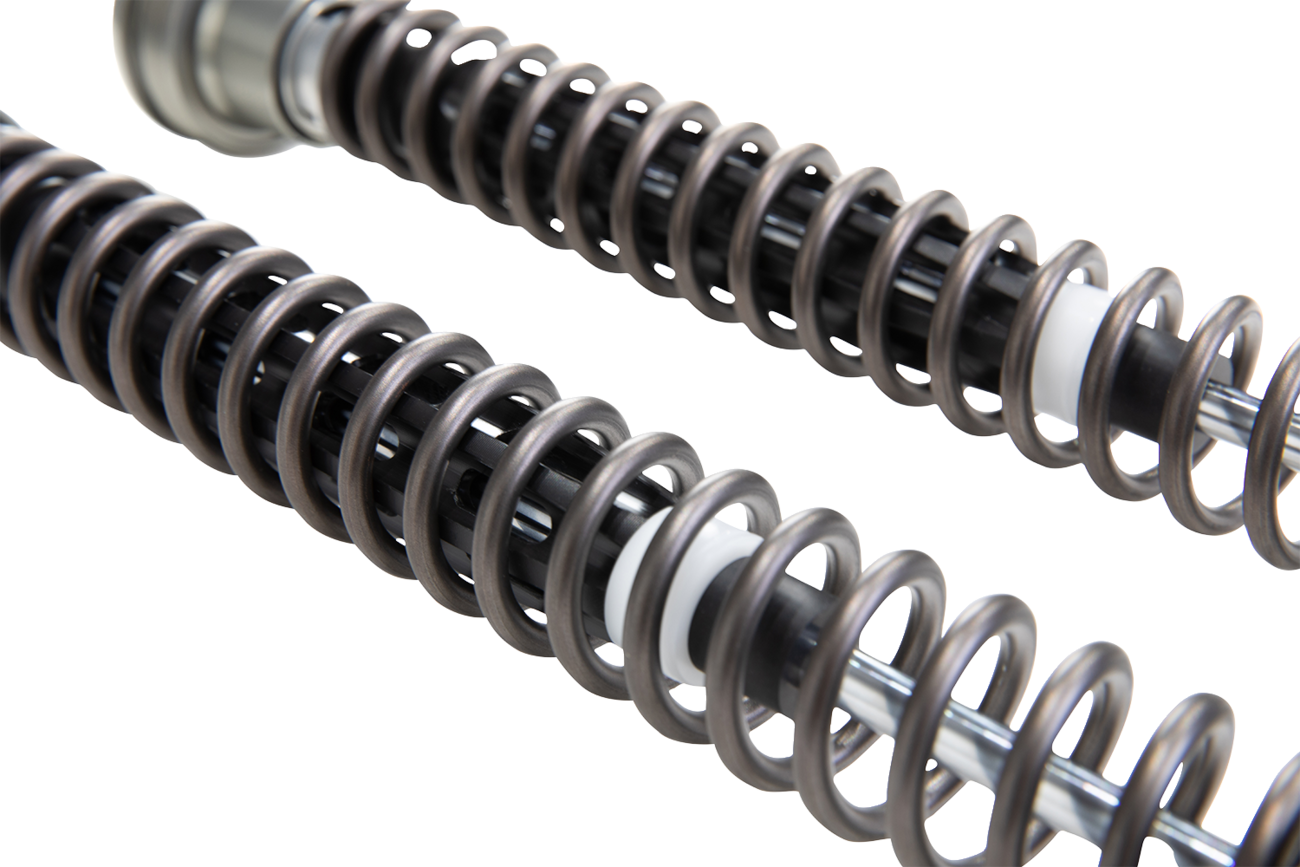

| Springs | Three rates included: 9.5, 10 and 10.5 N/mm |
| Oil | Öhlins 1309 |
| Replaces | FKR 105 |
| Manufacturer part number | FKR 205 |
Fitment
Year(s) — Make / Model
| 2016–2026 | Kawasaki Ninja ZX-10R |
| 2018–2019 | Kawasaki Ninja ZX-10RR |
| 2021 | Kawasaki Ninja ZX-10RR |
| 2023–2026 | Kawasaki Ninja ZX-10RR |
| 2017–2025 | Suzuki GSX-R1000R |
California Prop 65: this product can expose you to chemicals including nickel. See www.p65warnings.ca.gov.
