D.I.D 520 VR46 X-Ring Drive Chain – Silver and Gold – 120 Links

Chain & Sprockets / DID

$218.50

DAL: 1 HOU: 0 WEB: 20

Quantity:

Earn $10.92 in UBD Bucks

Fitment:

IMPORTANT: Please Review Your Owner’s Manual for Exact Amounts or Sizing of This Product!

We ship nationwide!

Questions?
Speak to one of our experts today:
469-890-0123

Brand:

DID

SKU:

1223-1598

Description:

D.I.D 520 VR46 X-Ring Drive Chain – Silver and Gold – 120 Links

Product Overview

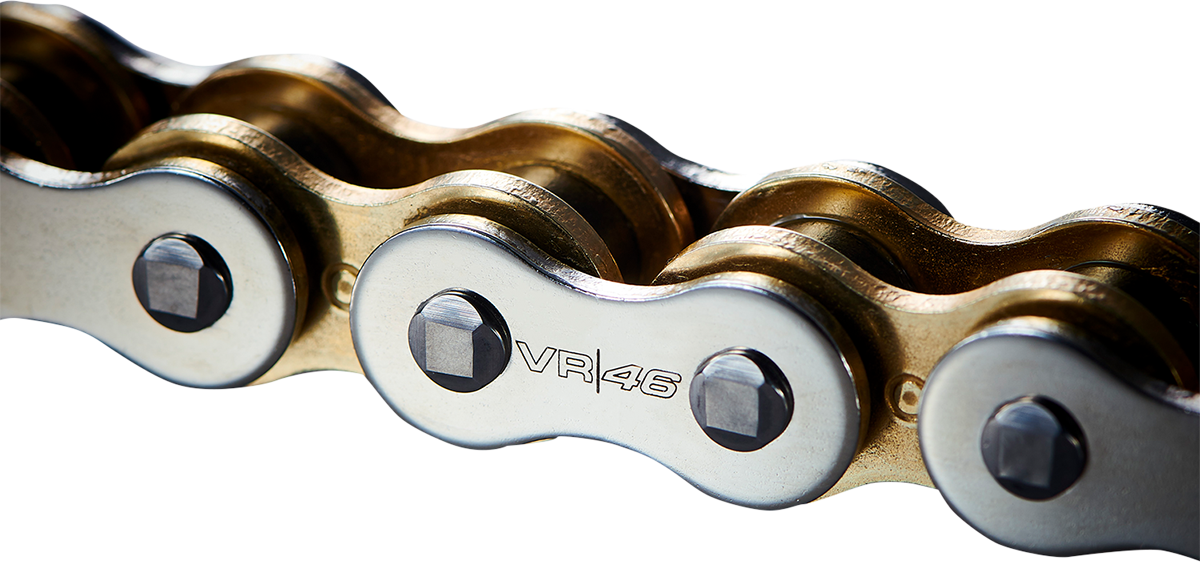

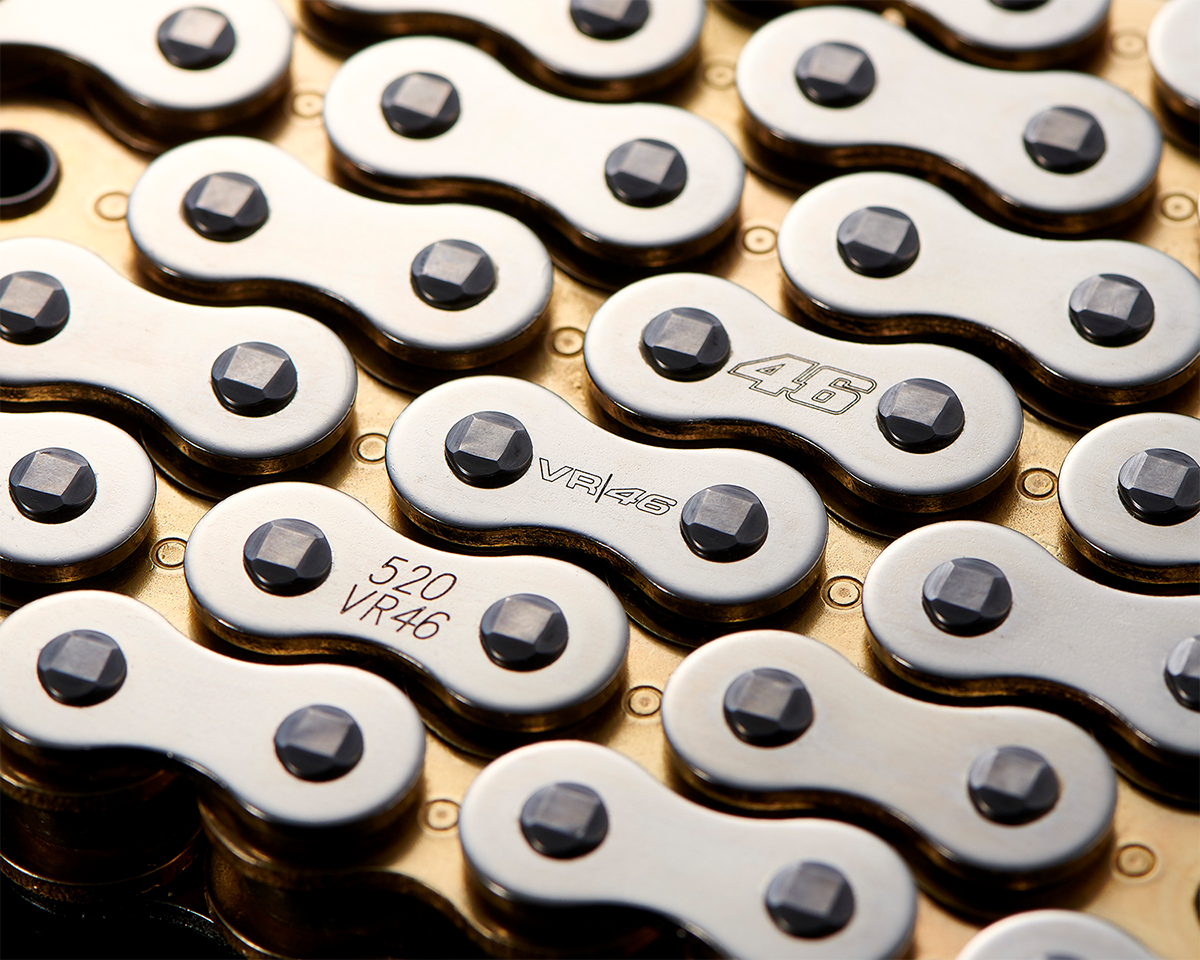

D.I.D’s 520 chain made in collaboration with Valentino Rossi. The outer plates are silver, the inner plates are gold, and the master link is Rossi’s yellow. It is supplied at 120 links with a rivet-type master link — this chain is available with a rivet link only.

Underneath the colours it is a D.I.D X-ring chain rated to 800cc.

Key Technology & Design

X-ring seal — D.I.D’s patented X-ring seals. This chain has a chain life index of 3,500.
Two-tone plates and a yellow master link — Silver outer plates, gold inner plates, and a yellow master link in Rossi’s colour.
Tensile strength — Rated at 36.5 kN, or 8,210 lb.
Rivet master link — A rivet-type connecting link is supplied; there is no clip-link version of this chain.

Specs

Part number	D.I.D 520VR46SG120
Chain size	520
Chain type	520 VR46
Seal type	X-ring
Links	120
Master link	Rivet type, yellow
Finish	Silver outer plates, gold inner plates
Tensile strength	36.5 kN (8,210 lb)
Maximum displacement	800 cc
Weight	3.35 lb per 100 links
Pin length	0.736 in
Pin diameter	0.206 in

Compatibility

This is a chain only — no sprockets. This chain is supplied at 120 links.

Commonly Used On

Year(s) — Make / Model — Stock Gearing — Stock Chain

2013–2018	Kawasaki Ninja ZX-6R 636	16T / 43T	520 — 112 links
2019–2026	Kawasaki Ninja ZX-6R 636	15T / 43T	520 — 112 links
2017–2026	Kawasaki Ninja 650	15T / 46T	520 — 114 links
2024–2026	Kawasaki Ninja 500	14T / 43T	520 — 108 links
2018–2023	Kawasaki Ninja 400	14T / 41T	520 — 106 links
2015–2026	Yamaha YZF-R3	14T / 43T	520 — 112 links
2013–2026	Honda CBR500R	15T / 41T	520 — 112 links
