Chain & Sprockets
| Manufacturer Part # | 520ZVMXB120Z |
| Chain Size | 520 |
| Chain Type | ZVM-X (X-ring) |
| Number of Links | 120 |
| Finish | Black (Raven Edition) — black side plates, silver-finish pins and rollers |
| Country of Origin | Made in Japan |
| Tensile Strength | 8,745 lb / 38.9 kN |
| Weight | 3.59 lb (1.63 kg) per 100 links |
| Max Engine Displacement (Street, per D.I.D guidance) | 1,200cc |
| Pin Length | 0.83" |
| Pin Diameter | 0.206" |
| Plate Thickness (Inner/Outer) | 2.2mm / 2.2mm |
| Master Link | Rivet-style, included (rivet tool required, sold separately) |
IMPORTANT: Please Review Your Owner’s Manual for Exact Amounts or Sizing of This Product!
" } ["brand"]=> string(5) "D.I.D" ["name"]=> string(61) "D.I.D 520 ZVM-X Raven Edition Drive Chain (120 Links) - Black" ["sku"]=> string(9) "1223-1564" ["slug"]=> string(54) "did-520-zvmx-raven-edition-drive-chain-120-links-black" ["price"]=> float(359.5) ["salePrice"]=> NULL ["isClearance"]=> bool(false) ["weight"]=> float(80) ["excludeFromLoyalty"]=> bool(false) ["images"]=> array(3) { [0]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/c66de6d4-34c5-420b-870e-bcb35271f80d.png" ["name"]=> string(16) "download (3).png" ["sortOrder"]=> int(1) } [1]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/25e897ec-a6fb-4d22-a412-f5c84398e462.png" ["name"]=> string(12) "download.png" ["sortOrder"]=> int(2) } [2]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/99e1ce0f-28e7-46aa-a3bf-b46d4bfa9fbd.png" ["name"]=> string(16) "download (1).png" ["sortOrder"]=> int(3) } } ["tag"]=> string(32) "Ships From Warehouse in 1-2 Days" ["colorVariant"]=> NULL } ["hasData"]=> bool(true) ["count"]=> int(1) ["isError"]=> bool(false) ["isWarning"]=> bool(false) ["errors"]=> array(0) { } ["warnings"]=> array(0) { } ["hasErrors"]=> bool(false) ["hasWarnings"]=> bool(false) ["message"]=> string(7) "Success" }D.I.D 520 ZVM-X Raven Edition Drive Chain (120 Links) – Black
IMPORTANT: Please Review Your Owner’s Manual for Exact Amounts or Sizing of This Product!
Speak to one of our experts today:
469-490-3577
D.I.D
SKU:1223-1564
Description:D.I.D 520 ZVM-X Raven Edition Drive Chain — 120 Link, Black
Product Overview

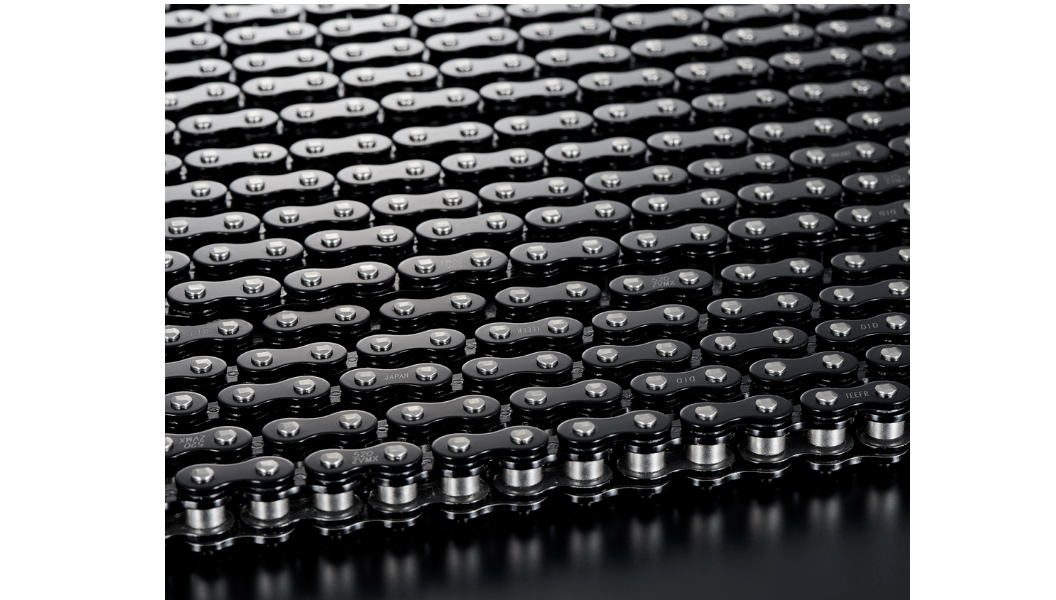

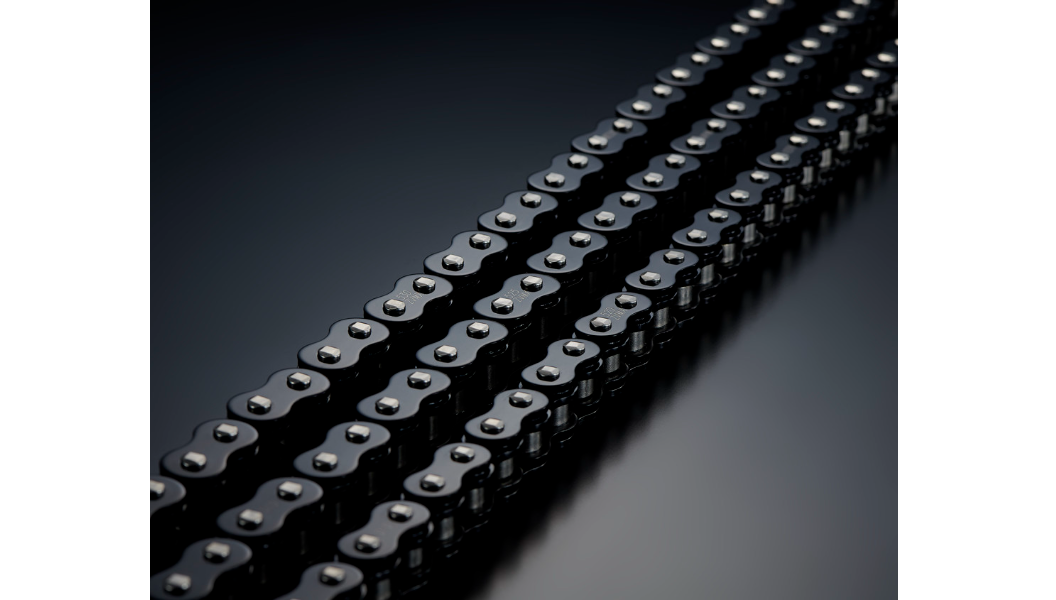

The D.I.D 520 ZVM-X is a heavy-duty 520-pitch chain built for high-power street and track bikes — think liter-class sportbikes and big naked bikes running stock or 520-converted gearing. It sits above D.I.D’s 520VX3 in the lineup, rated to a higher displacement ceiling and higher tensile strength, with thicker side plates. The Raven Edition is the black-finish version: glossy black inner and outer plates paired with silver-finished pins and rollers. Mechanically it’s the same ZVM-X chain — the black is a finish choice, not a different-spec chain.
This chain comes with D.I.D’s X-ring seal, supplied only with a rivet-style connecting link (included). A rivet tool is required to install it — not included with the chain.
Key Technology & Design
D.I.D’s X-ring seal has an X-shaped cross section rather than the round cross section used in O-ring chains. Instead of being squashed flat between the side plates, the X-ring twists slightly under plate pressure, creating four contact points instead of the two an O-ring produces. D.I.D states this reduces surface contact between the seal and the plates, leading to smoother power delivery and less energy loss, while helping the seal hold factory-packed grease in place over the life of the chain.
Compared to the 520VX3, the ZVM-X carries a higher displacement rating (1,200cc vs. 800cc), higher tensile strength (8,745 lb vs. 8,210 lb), and thicker side plates (2.2mm vs. 2.0mm) — the material differences behind D.I.D’s positioning of ZVM-X as the stronger of the two.
Keep in mind that chain lube applied from the outside doesn’t reach the sealed internal bushing — it’s there to protect the rollers, side plates, and sprocket contact surfaces from corrosion and to keep the seal lips pliable.
Specs
| Manufacturer Part # | 520ZVMXB120Z |
| Chain Size | 520 |
| Chain Type | ZVM-X (X-ring) |
| Number of Links | 120 |
| Finish | Black (Raven Edition) — black side plates, silver-finish pins and rollers |
| Country of Origin | Made in Japan |
| Tensile Strength | 8,745 lb / 38.9 kN |
| Weight | 3.59 lb (1.63 kg) per 100 links |
| Max Engine Displacement (Street, per D.I.D guidance) | 1,200cc |
| Pin Length | 0.83″ |
| Pin Diameter | 0.206″ |
| Plate Thickness (Inner/Outer) | 2.2mm / 2.2mm |
| Master Link | Rivet-style, included (rivet tool required, sold separately) |
