Wheels
- Yamaha YZF-R1 2015–2025
- Yamaha YZF-R1S 2015–2016
- Yamaha YZF-R1M 2015–2025
Product Overview

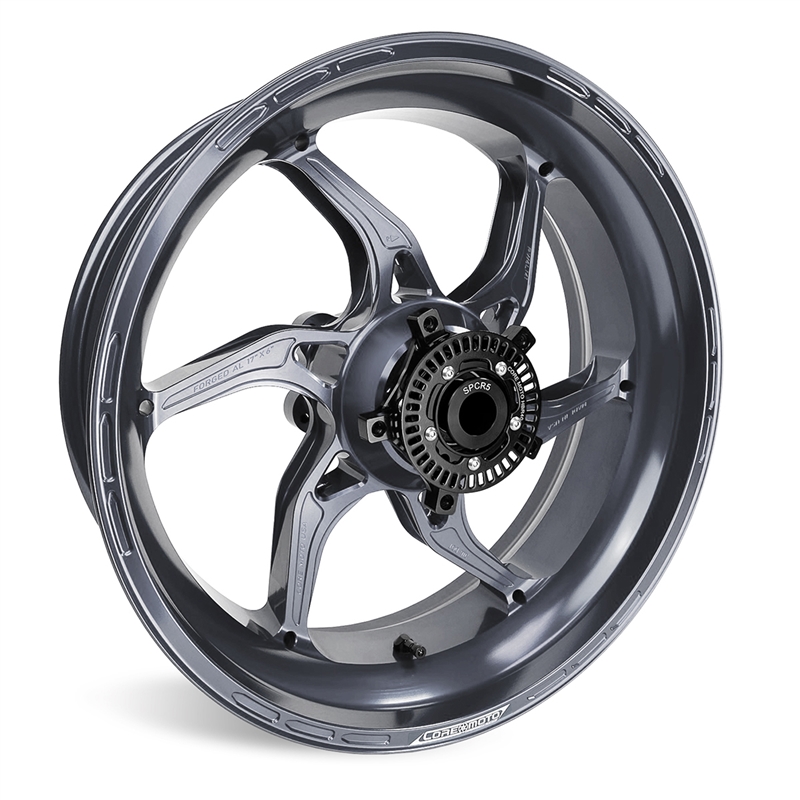

This is a complete front and rear forged aluminum wheel set for the 2015–2025 Yamaha YZF-R1, R1S, and R1M. Both wheels arrive fully assembled with all spacers, bearings, rotor carriers, cush drive system, speed sensor rings, and 90-degree black aluminum valve stems installed. The only items you supply are tires and OEM brake rotors.
No modification to the bike is required. These wheels bolt directly onto the 2015–2025 R1 platform.
What this listing includes as configured:
- Premium steel bearings
- One free black aluminum sprocket matching your stock tooth count and OEM chain pitch
- Gloss Black rotor and sprocket carriers
The Apex-6 requires a custom 5-bolt sprocket — it does not use the stock sprocket bolt pattern. The free OEM-spec sprocket included with this listing covers that requirement. If you want a non-stock tooth count or a different chain pitch, contact us before ordering.
The finish on this listing is Gloss Ti Gray anodized. Anodizing is a surface treatment applied to the aluminum itself — it is not paint or powder coat. Shade can vary slightly between production batches. Wheel sets are anodized as a matched front and rear pair, so color consistency within a set is close, though minor variation under 5% is possible.
Key Technology & Design
Monolithic hub construction. The Apex-6 is a one-piece forged wheel — the bearing housing and cush drive system are integrated directly into the wheel body rather than using a separate bolt-on hub. Core Moto states this approach produces greater rigidity and lower weight compared to multi-piece hub designs.
Proprietary forging process. Core Moto uses model-specific forging dies rather than generic blanks shared across multiple applications. Each wheel starts as an aluminum billet, heated and shaped under a 6,000-ton constant-pressure hydraulic forge to establish the hub and spoke profile with optimized grain flow. A cold spin process then forms the rim section. After forging, blanks are heat treated and finish-machined by 3-axis and 5-axis CNC equipment using carbide and diamond tooling. Constant-pressure forging produces more controlled and consistent grain flow than drop forging. Core Moto wheels are not drop forged.
Bearings. This listing is configured with premium steel bearings sourced from verified top-tier manufacturers. Core Moto states their bearings are in most cases larger and wider than stock. For the Apex-6, most rear applications use 3x B6006 bearings and most fronts use 2x B6205. Replacement part details are included in the exploded view diagram shipped with the wheels. WWB ceramic hybrid bearing upgrades are available — contact us if you are interested in that option.
Cush drive system. The rear wheel uses a 5 or 6-pot cylindrical cush drive system. Current production bushings are a single bonded hardened steel and rubber unit developed and refined since 2016.
Sprocket carrier. The Apex-6 uses a 5-bolt anodized CNC aluminum sprocket carrier with pressed-in studs, metal locking sprocket nuts, a bearing retaining ring, and a bearing included. The stud design has been revised for improved load distribution and corrosion resistance. Carriers on this listing are Gloss Black.
Rotor carriers. Carriers are mounted with stainless steel hardware and accept OEM and most aftermarket rotors and rotor bolts. Hardware material is chosen to avoid interference with wheel speed sensor pickups. Rotor carriers on this listing are Gloss Black.
Speed sensor rings. This R1 application includes Core Moto speed sensor rings for both front and rear. Their weight is included in the fully assembled wheel weights listed in the Specs section.
Valve stems. 90-degree aluminum valve stems in black are installed on both wheels.
Certifications. DOT and JWL certified. Core Moto states these wheels have been tested by an accredited laboratory to exceed JASO/DOT/JWL standards. Approved for street and track use.
Unsprung and rotational mass. Wheels sit below the suspension — reducing their weight allows the suspension to respond more freely to surface inputs rather than working against the mass of the wheel itself. Reducing rotational mass decreases the energy required to accelerate and brake the wheel, which shortens braking distances and improves acceleration response. Gyroscopic forces are reduced at higher speeds, which lightens steering effort. Track riders and aggressive street riders will notice these effects. For casual street commuting the difference exists but may be subtle.
Wheel care. Core Moto recommends Lemon Pledge and a microfiber cloth for routine cleaning of anodized surfaces. For heavier cleaning, use a mild, acid-free car wash soap. Do not use degreasers or acidic washes on anodized surfaces.
Specs
| Wheel set | Front + Rear |
| Front size | 3.50" x 17" |
| Rear size | 6.00" x 17" |
| Bare front weight | 5.79 lbs |
| Bare rear weight | 7.96 lbs |
| Assembled front weight | 7.73 lbs |
| Assembled rear weight | 11.50 lbs |
| Total assembled set weight | 19.23 lbs (all components and hardware included — nothing omitted; includes Core Moto speed sensor rings) |
| Finish | Gloss Ti Gray anodized |
| Bearings | Premium steel |
| Sprocket included | OEM tooth count, OEM pitch, black aluminum |
| Carrier color | Gloss Black |
| Sprocket bolt pattern | 5-bolt, M10x1.25, 100mm BHC, 76mm hub diameter |
| Certifications | DOT, JWL |
| Made in | USA |
| Product code | YR1K2A6-AGRY |
Fitment
Year(s) — Make / Model
| 2015–2025 | Yamaha YZF-R1 |
| 2015–2016 | Yamaha YZF-R1S |
| 2015–2025 | Yamaha YZF-R1M |
Core Moto Apex-6 Forged Wheel Set – Gloss Ti Gray – Yamaha R1 / R1S / R1M '15-'25
