Chain & Sprockets
- RK's XRE chain with XW-ring seals, in a gold finish.
Driven aluminum rear sprocket
- 7075-T6511 aluminum, black hard anodized.
Driven steel front sprocket
- C45 steel, case hardened and quenched.
Race gearing
- 15-tooth front, 45-tooth rear. RK say the kit pairs race gearing with a lightweight rear for quicker starts, without changing normal ride and handling.
Specs
| Part number | RK 2068-078DGX |
| Chain | RK GB520XRE, XW-ring |
| Chain size | 520 |
| Chain finish | Gold |
| Front sprocket | 15 teeth, Driven C45 steel |
| Rear sprocket | 45 teeth, Driven 7075 aluminum |
| Master link | Rivet type |
| Gearing vs stock | One down front, two up rear |
Fitment
Year(s) — Make / Model — Stock Gearing — Stock Chain
| 2007–2012 | Kawasaki Ninja ZX-6R (ZX600P/R) | 16T / 43T | 520 — 112 links |
| 2013–2018 | Kawasaki Ninja ZX-6R (636), ABS and non-ABS | 16T / 43T | 520 — 112 links |
Gearing — What Changes
Going one tooth smaller on the front shortens the gearing. You get quicker acceleration and higher RPM at highway speed, with some top speed given up. Adding teeth at the rear does the same thing, so this kit's 15/45 is a clearly shorter ratio than the stock 16/43. If you ride mostly highway miles, a stock-geared kit may suit you better. Ask us and we will point you to one.
A gearing change can change the chain length you need. We cut chain in house, so ask us if you want it worked out before you order.
" ["features"]=> string(0) "" ["specifications"]=> string(0) "" ["inventoryInfo"]=> string(0) "" ["warehouseFulfillment"]=> bool(false) ["loyaltyRewardAmount"]=> float(14.96) ["productID"]=> int(233) ["category"]=> string(2) "17" ["categoryName"]=> string(17) "Chain & Sprockets" ["categoryObj"]=> array(10) { ["categoryID"]=> int(17) ["parentID"]=> int(9991) ["name"]=> string(17) "Chain & Sprockets" ["slug"]=> string(15) "chain-sprockets" ["children"]=> array(0) { } ["metaTitle"]=> string(0) "" ["metaDescription"]=> string(0) "" ["metaKeywords"]=> string(0) "" ["fitmentOverride"]=> bool(true) ["fitmentOverrideDescription"]=> string(180) "IMPORTANT: Please Review Your Owner’s Manual for Exact Amounts or Sizing of This Product!
" } ["brand"]=> string(8) "RK-Excel" ["name"]=> string(72) "RK 520 Aluminum Race Chain & Sprocket Kit - Gold - Kawasaki ZX-6R '07-18" ["sku"]=> string(9) "1230-1707" ["slug"]=> string(62) "rk-chain-sprocket-kit-520-aluminum-race-kit-kawasaki-zx6r-0726" ["price"]=> float(299.15) ["salePrice"]=> NULL ["isClearance"]=> bool(false) ["weight"]=> float(104) ["excludeFromLoyalty"]=> bool(false) ["images"]=> array(6) { [0]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/7db6a2e0-9bad-4b9f-8ccc-713864db7181.jpg" ["name"]=> string(16) "IMG_1282.1-1.jpg" ["sortOrder"]=> int(1) } [1]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/6d3c6951-d49e-4199-b06a-4fb80acf1d25.jpg" ["name"]=> string(12) "IMG_1265.jpg" ["sortOrder"]=> int(2) } [2]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/f7c861ba-f234-461f-990d-d3618d2e3a49.jpg" ["name"]=> string(12) "IMG_1266.jpg" ["sortOrder"]=> int(3) } [3]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/564a83c6-d61f-4407-9c24-42a544a5730e.jpg" ["name"]=> string(12) "IMG_1267.jpg" ["sortOrder"]=> int(4) } [4]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/ed0efb52-53a8-47c8-a875-c33aa3a084c3.jpg" ["name"]=> string(12) "IMG_1283.jpg" ["sortOrder"]=> int(5) } [5]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/50756881-aecb-4a68-9f8e-81f68d60c34b.jpg" ["name"]=> string(12) "IMG_1277.jpg" ["sortOrder"]=> int(6) } } ["tag"]=> string(0) "" ["inventoryTag"]=> string(23) "DAL: 1 HOU: 1 WEB: 0" ["colorVariant"]=> NULL ["featured"]=> bool(false) } ["hasData"]=> bool(true) ["count"]=> int(1) ["isError"]=> bool(false) ["isWarning"]=> bool(false) ["errors"]=> array(0) { } ["warnings"]=> array(0) { } ["hasErrors"]=> bool(false) ["hasWarnings"]=> bool(false) ["message"]=> string(7) "Success" }RK 520 Aluminum Race Chain & Sprocket Kit – Gold – Kawasaki ZX-6R '07-18
IMPORTANT: Please Review Your Owner’s Manual for Exact Amounts or Sizing of This Product!
Speak to one of our experts today:
469-890-0123
RK-Excel
SKU:1230-1707
Description:RK 520 Aluminum Race Chain & Sprocket Kit – Gold – Kawasaki ZX-6R ’07–18
Product Overview

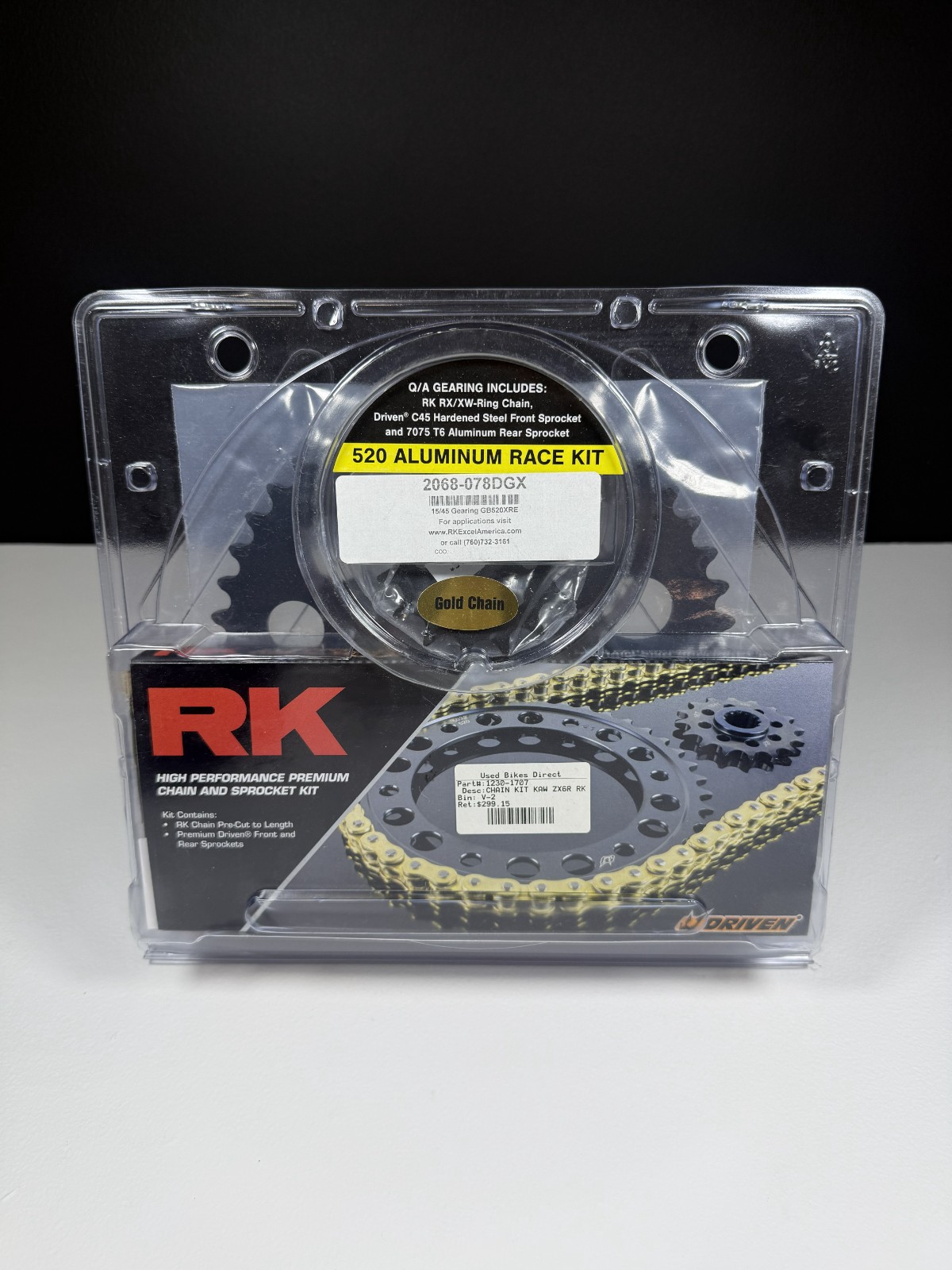

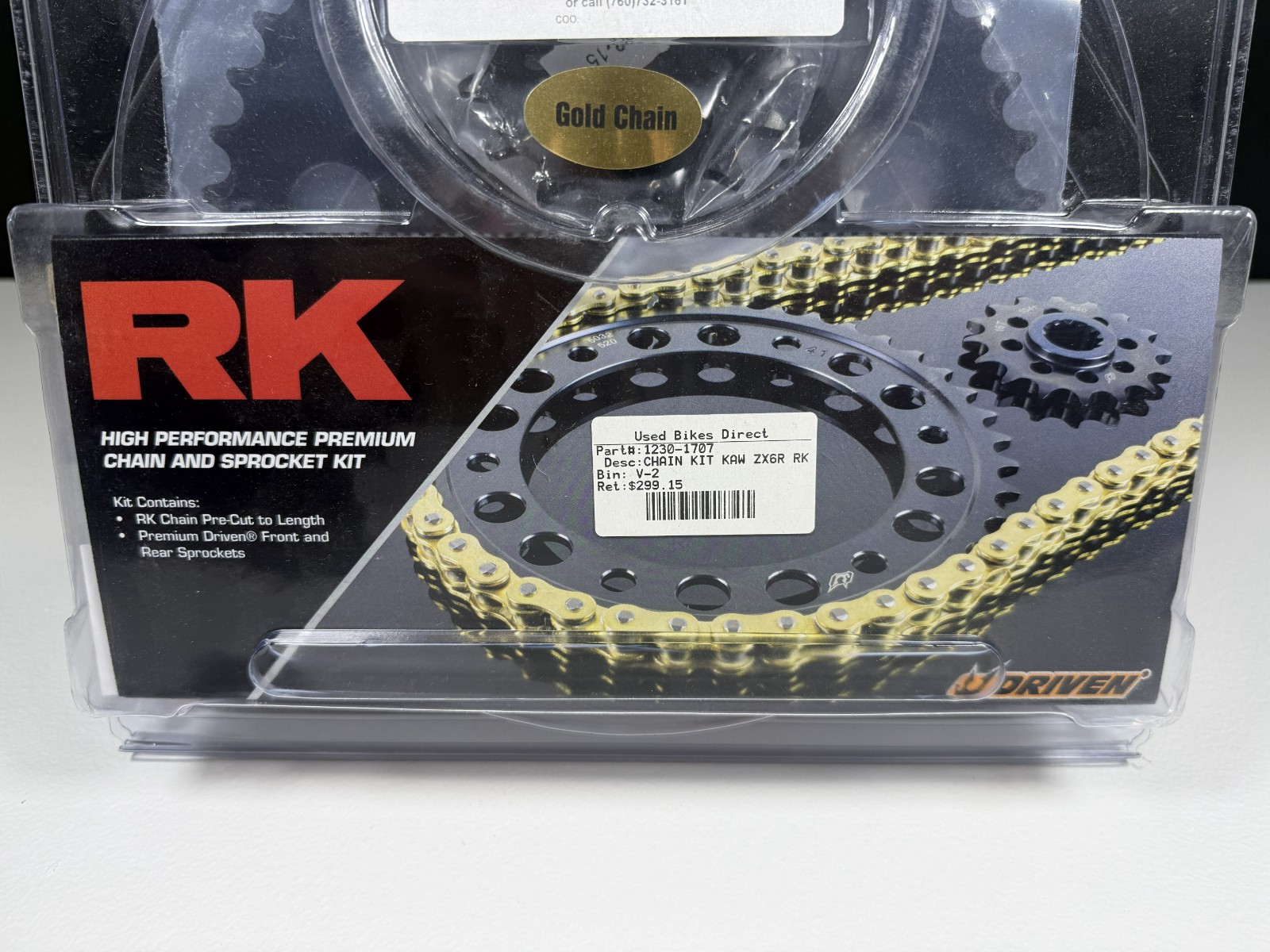

RK’s 520 Aluminum Race kit for the 2007–2018 Ninja ZX-6R: a gold RK XW-ring chain, a Driven aluminum rear sprocket and a Driven steel front. RK gear it 15/45 against the bike’s stock 16/43, one tooth smaller on the front and two larger on the rear, for quicker acceleration.
The rear sprocket is 7075 aluminum, which is much lighter than steel and takes weight out of the rotating drivetrain. The trade is wear: aluminum wears faster than steel. The front sprocket, where wear is highest, stays steel.
The ZX-6R is a 520 bike from the factory, so this is a like-for-like chain size, not a conversion.
The master link is a rivet type. It is pressed closed with a chain tool, not clipped on by hand. If you are not set up to rivet a master link, have it done.
If your ZX-6R is a 2019 or later, this is not the listed kit for it. RK catalogue those years separately.
Key Technology & Design
XW-ring chain

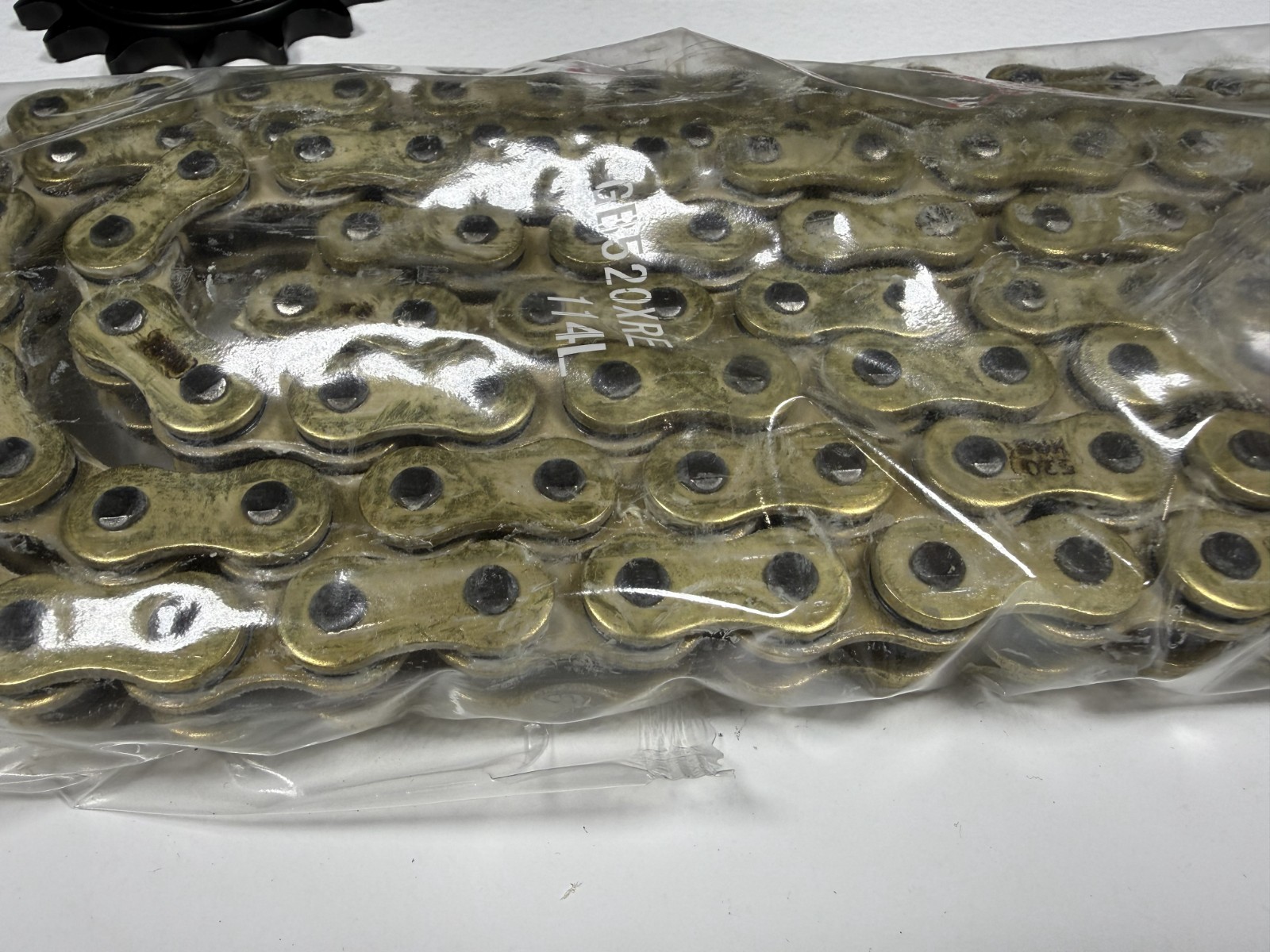

- RK’s XRE chain with XW-ring seals, in a gold finish.

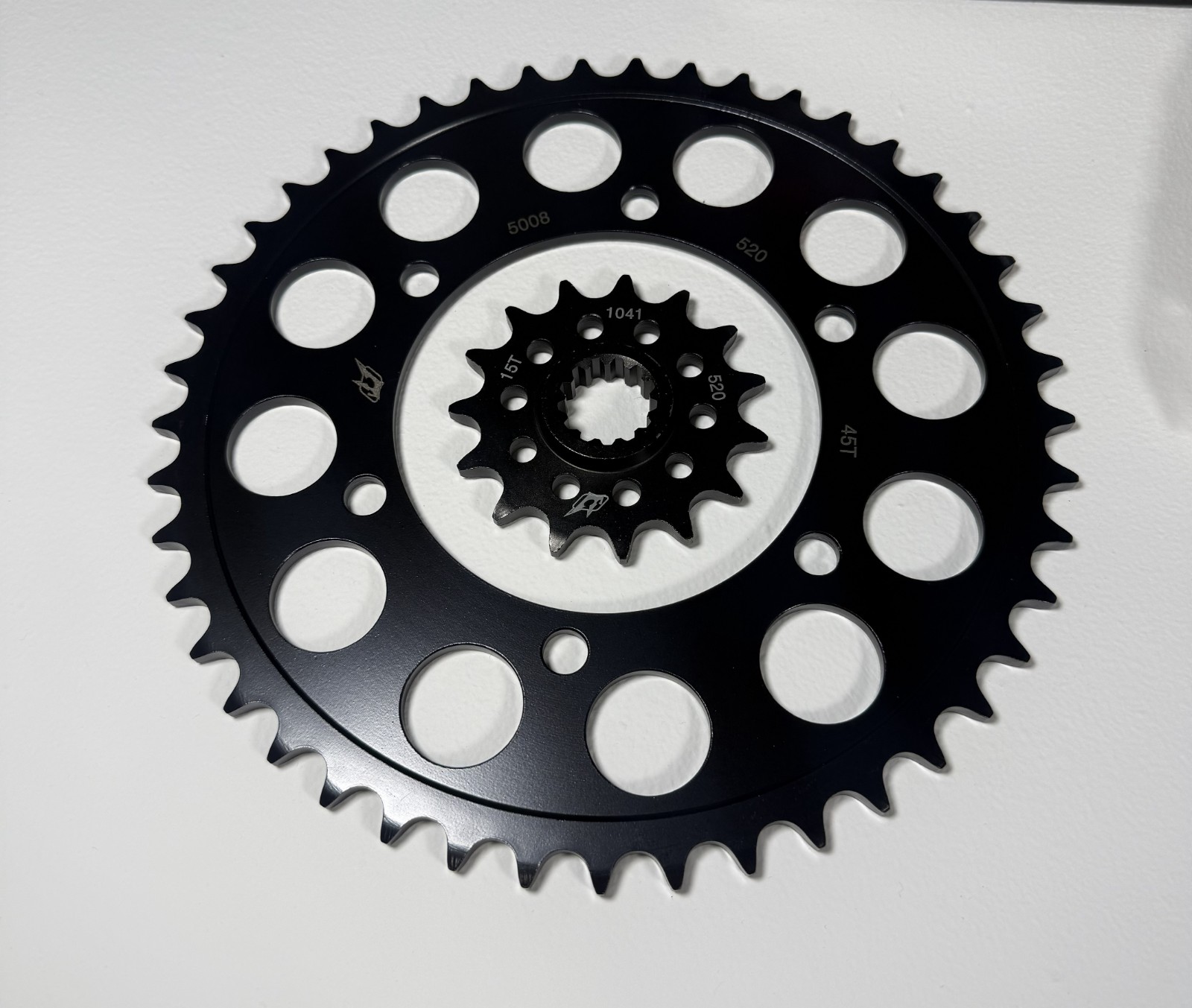

Driven aluminum rear sprocket
- 7075-T6511 aluminum, black hard anodized.
Driven steel front sprocket
- C45 steel, case hardened and quenched.
Race gearing
- 15-tooth front, 45-tooth rear. RK say the kit pairs race gearing with a lightweight rear for quicker starts, without changing normal ride and handling.
Specs

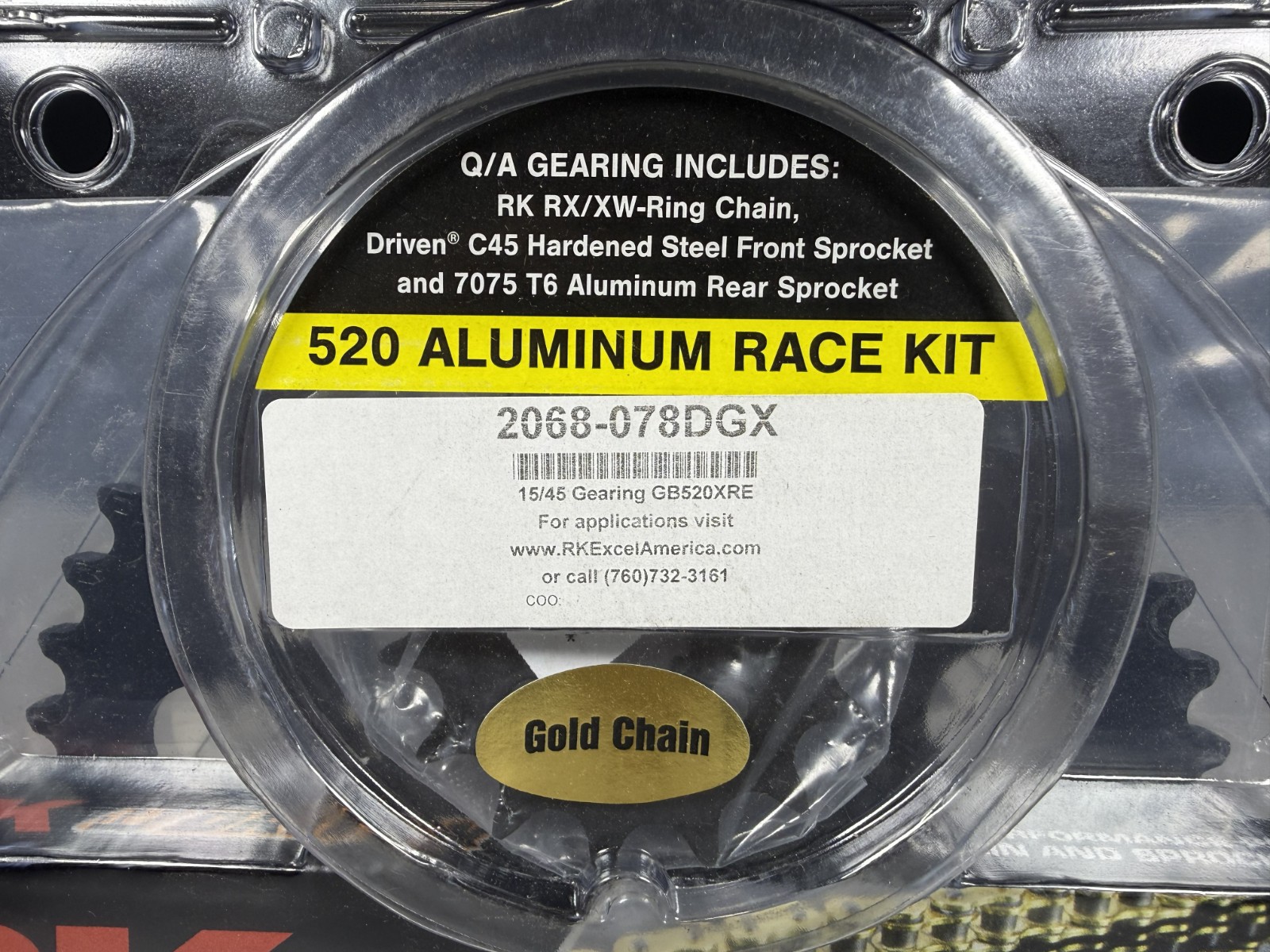

| Part number | RK 2068-078DGX |
| Chain | RK GB520XRE, XW-ring |
| Chain size | 520 |
| Chain finish | Gold |
| Front sprocket | 15 teeth, Driven C45 steel |
| Rear sprocket | 45 teeth, Driven 7075 aluminum |
| Master link | Rivet type |
| Gearing vs stock | One down front, two up rear |
Fitment
Year(s) — Make / Model — Stock Gearing — Stock Chain
| 2007–2012 | Kawasaki Ninja ZX-6R (ZX600P/R) | 16T / 43T | 520 — 112 links |
| 2013–2018 | Kawasaki Ninja ZX-6R (636), ABS and non-ABS | 16T / 43T | 520 — 112 links |
Gearing — What Changes
Going one tooth smaller on the front shortens the gearing. You get quicker acceleration and higher RPM at highway speed, with some top speed given up. Adding teeth at the rear does the same thing, so this kit’s 15/45 is a clearly shorter ratio than the stock 16/43. If you ride mostly highway miles, a stock-geared kit may suit you better. Ask us and we will point you to one.
A gearing change can change the chain length you need. We cut chain in house, so ask us if you want it worked out before you order.
