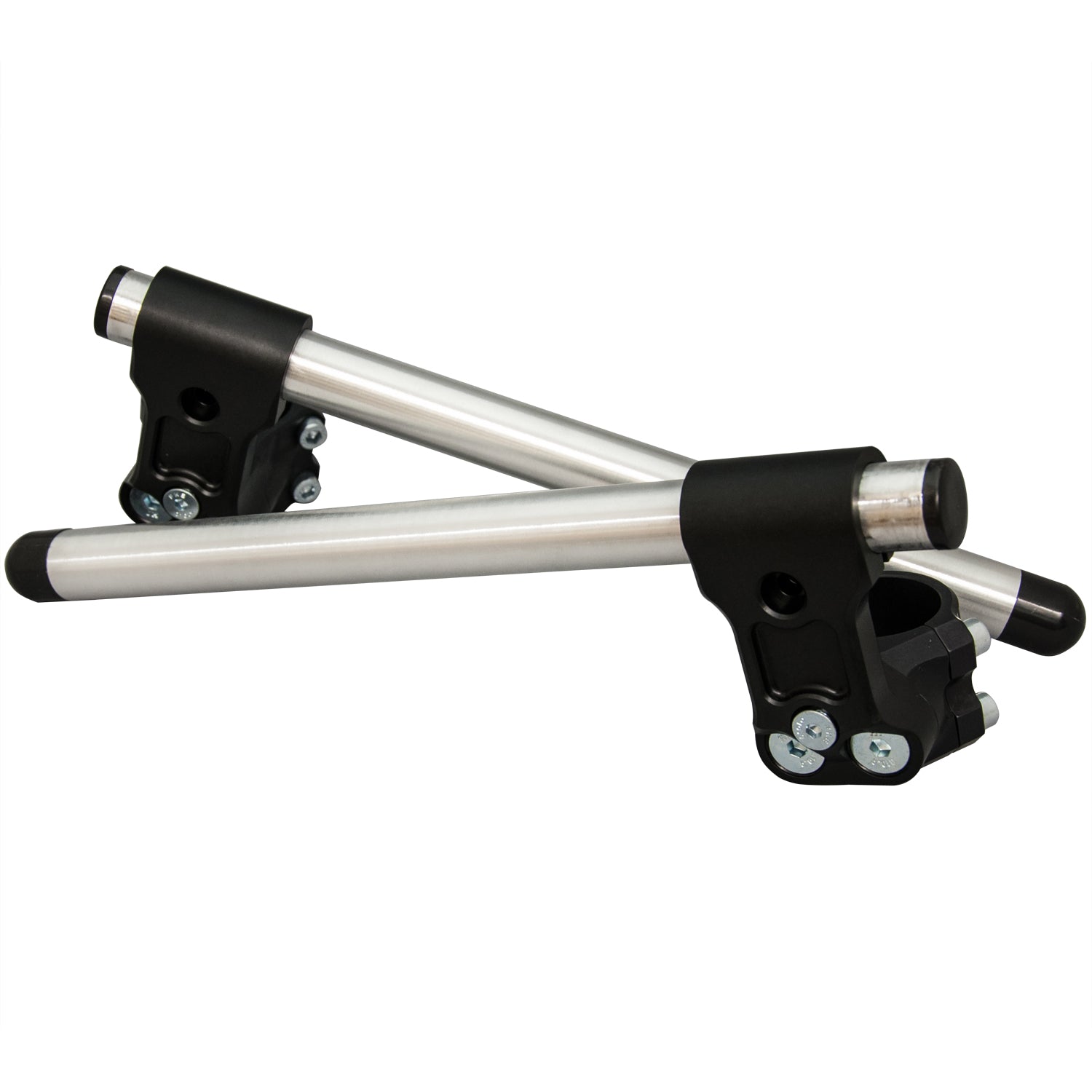

Woodcraft's riser clip-on set for the Kawasaki Ninja 400 (2018–2023) and Ninja 500 (2024–2026), in the black version with regular 12 inch bars. It is a riser made just for these bikes, and it bolts on with no modifications of any type. It works for both street and track.
The set uses Woodcraft's 3-piece split design, and the bars are 12 inches long and adjustable to whatever width you want. A silver version, and an XL (13.5 inch) bar version, are also made.
Key Technology & Design
Bolt-on fit — The riser is made for the Ninja 400 and 500 and needs no modifications of any type.
3-piece split design — The clip-ons can be serviced below the triple clamp without disassembling the entire front end.
2.5 inch rise — The rise is 2.5 inches over a conventional race clip-on; it is not measured against any stock clip-on, since every stock clip-on is different.
Universal replacement bars — The set uses an inexpensive universal handlebar, so a crash does not mean replacing a complete clip-on assembly.
7/8 inch bars — The bars leave room for hand guards or other optional switchgear.
Weight saved where possible — The clamps were designed to save weight wherever possible.
Specs
Woodcraft part number
12-4541K3-78B
Version
Black, Regular (12")
Bars
2 x 12 inch (Standard) replacement handlebar assembly, 7/8" black (13-4100)
Bar ends
Large bar plug end (13-0100BE), small bar end (13-0100BE2)
Woodcraft’s riser clip-on set for the Kawasaki Ninja 400 (2018–2023) and Ninja 500 (2024–2026), in the black version with regular 12 inch bars. It is a riser made just for these bikes, and it bolts on with no modifications of any type. It works for both street and track.
The set uses Woodcraft’s 3-piece split design, and the bars are 12 inches long and adjustable to whatever width you want. A silver version, and an XL (13.5 inch) bar version, are also made.
Key Technology & Design
Bolt-on fit — The riser is made for the Ninja 400 and 500 and needs no modifications of any type.
3-piece split design — The clip-ons can be serviced below the triple clamp without disassembling the entire front end.
2.5 inch rise — The rise is 2.5 inches over a conventional race clip-on; it is not measured against any stock clip-on, since every stock clip-on is different.
Universal replacement bars — The set uses an inexpensive universal handlebar, so a crash does not mean replacing a complete clip-on assembly.
7/8 inch bars — The bars leave room for hand guards or other optional switchgear.
Weight saved where possible — The clamps were designed to save weight wherever possible.
Specs
Woodcraft part number
12-4541K3-78B
Version
Black, Regular (12″)
Bars
2 x 12 inch (Standard) replacement handlebar assembly, 7/8″ black (13-4100)
Bar ends
Large bar plug end (13-0100BE), small bar end (13-0100BE2)
