Frame & Fairing Protection
- The sliders are nylon pucks, the part designed to take the contact in a slide.
Rubber end caps
- A rubber cap covers the end of each puck, which Puig states protects the rider's knee from knocking the slider.
Engine-mount fitting
- Each side bolts through an engine-to-chassis mounting point with a long M12 bolt and a left- or right-specific aluminum spacer.
One kit across the R1 family
- Puig lists the same reference for the R1, the R1M and the MT-10.
Replaceable wear parts
- The rubber caps are sold separately in seven colors, so a scuffed set can be refreshed rather than replaced.
Specs
| Reference | 7724N |
| Model | R19 |
| Sold as | Pair, with mounting hardware |
| Color | Black nylon, grey rubber caps as supplied |
| Material | Nylon puck, rubber end cap, aluminum spacers |
| In the box | 2 x cap sets, 1 x M12 x 90 bolt, 1 x M12 x 120 bolt, 2 x washers, 2 x nylon protectors, right and left aluminum spacers |
| Mounting | Engine-to-chassis bolts; no bodywork cutting called for |
| Thread-locker | Medium strength; re-check all bolts after the first 50 km (about 30 miles), per Puig |
| Compatibility | Not compatible with engine guards |
Fitment
Year(s) — Make / Model
| 2015–2025 | Yamaha YZF-R1 |
| 2017–2024 | Yamaha YZF-R1M |
| 2018–2026 | Yamaha MT-10 |
| 2022–2026 | Yamaha MT-10 SP |
| 2017 | Yamaha FZ-10 |
If you have a 2025 or later R1M, contact us before ordering and we will confirm it with Puig.
" ["features"]=> string(0) "" ["specifications"]=> string(0) "" ["inventoryInfo"]=> string(0) "" ["warehouseFulfillment"]=> bool(true) ["loyaltyRewardAmount"]=> float(6.2) ["productID"]=> int(613) ["category"]=> string(2) "16" ["categoryName"]=> string(26) "Frame & Fairing Protection" ["categoryObj"]=> array(10) { ["categoryID"]=> int(16) ["parentID"]=> int(9991) ["name"]=> string(26) "Frame & Fairing Protection" ["slug"]=> string(24) "frame-fairing-protection" ["children"]=> array(0) { } ["metaTitle"]=> string(0) "" ["metaDescription"]=> string(0) "" ["metaKeywords"]=> string(0) "" ["fitmentOverride"]=> bool(false) ["fitmentOverrideDescription"]=> string(0) "" } ["brand"]=> string(18) "PUIG HI-TECH PARTS" ["name"]=> string(67) "Puig R19 Frame Sliders - Black - Yamaha YZF-R1 '15-25 / R1M / MT-10" ["sku"]=> string(9) "0505-1807" ["slug"]=> string(55) "puig-r19-frame-sliders-black-yamaha-yzfr1-1525-r1m-mt10" ["price"]=> float(123.9) ["salePrice"]=> NULL ["isClearance"]=> bool(false) ["weight"]=> float(21.76) ["excludeFromLoyalty"]=> bool(false) ["images"]=> array(2) { [0]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/e4663ce6-08b4-4d87-950c-0912752f2e76.png" ["name"]=> string(9) "img_0.png" ["sortOrder"]=> int(1) } [1]=> array(3) { ["filename"]=> string(117) "https://s3.us-east-2.amazonaws.com/usedbikesdirect.prod.public/product-parts/f10a017a-8f79-4c55-91b6-0cfc3ca0e5da.png" ["name"]=> string(11) "img_0_1.png" ["sortOrder"]=> int(2) } } ["tag"]=> string(0) "" ["inventoryTag"]=> string(23) "HOU: 1 DAL: 0 WEB: 3" ["colorVariant"]=> NULL ["featured"]=> bool(false) } ["hasData"]=> bool(true) ["count"]=> int(1) ["isError"]=> bool(false) ["isWarning"]=> bool(false) ["errors"]=> array(0) { } ["warnings"]=> array(0) { } ["hasErrors"]=> bool(false) ["hasWarnings"]=> bool(false) ["message"]=> string(7) "Success" }Puig R19 Frame Sliders – Black – Yamaha YZF-R1 '15-25 / R1M / MT-10
Speak to one of our experts today:
469-890-0123
PUIG HI-TECH PARTS
SKU:0505-1807
Description:Puig R19 Frame Sliders – Black – Yamaha YZF-R1 ’15–25 / R1M / MT-10
Product Overview

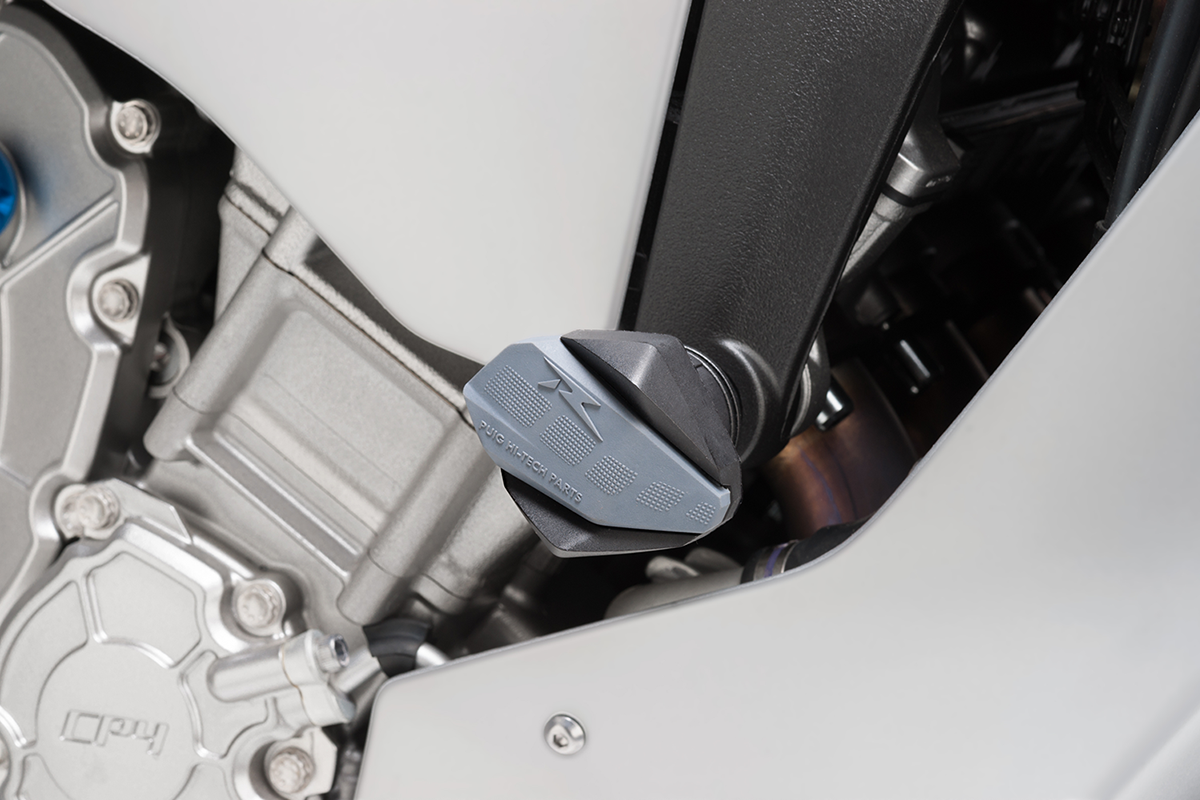

These are Puig’s R19 frame sliders for the 2015-and-later Yamaha YZF-R1 and R1M, and Puig lists the same kit for the FZ-10 / MT-10. Reference 7724N, sold as a pair with the mounting hardware. Each slider is a nylon puck with a rubber end cap. Puig states they protect the engine and chassis in a fall, and that they sit inside the width of the handlebars and touch down after the footpegs.
The rubber end caps are there for the rider as much as the bike: Puig states they protect your knee from knocking the slider when getting on and off.
Three things to know before you order:
They bolt through the engine mounts. Puig’s instructions have you remove the engine-to-chassis bolt on each side and refit it with the longer M12 bolts supplied, with a side-specific aluminum spacer on each side. The instructions do not call for cutting or drilling any bodywork.
They are not compatible with engine guards. Puig states this for the R19 range.
The rubber caps come in grey. The nylon puck is black; the rubber end caps are supplied in grey. Puig sells replacement caps in black, blue, red, orange, green, grey and white (reference 3148, by color). Ask us and we will add them to your order.
Key Technology & Design
Nylon pucks
- The sliders are nylon pucks, the part designed to take the contact in a slide.
Rubber end caps
- A rubber cap covers the end of each puck, which Puig states protects the rider’s knee from knocking the slider.
Engine-mount fitting
- Each side bolts through an engine-to-chassis mounting point with a long M12 bolt and a left- or right-specific aluminum spacer.
One kit across the R1 family
- Puig lists the same reference for the R1, the R1M and the MT-10.
Replaceable wear parts
- The rubber caps are sold separately in seven colors, so a scuffed set can be refreshed rather than replaced.
Specs
| Reference | 7724N |
| Model | R19 |
| Sold as | Pair, with mounting hardware |
| Color | Black nylon, grey rubber caps as supplied |
| Material | Nylon puck, rubber end cap, aluminum spacers |
| In the box | 2 x cap sets, 1 x M12 x 90 bolt, 1 x M12 x 120 bolt, 2 x washers, 2 x nylon protectors, right and left aluminum spacers |
| Mounting | Engine-to-chassis bolts; no bodywork cutting called for |
| Thread-locker | Medium strength; re-check all bolts after the first 50 km (about 30 miles), per Puig |
| Compatibility | Not compatible with engine guards |
Fitment
Year(s) — Make / Model
| 2015–2025 | Yamaha YZF-R1 |
| 2017–2024 | Yamaha YZF-R1M |
| 2018–2026 | Yamaha MT-10 |
| 2022–2026 | Yamaha MT-10 SP |
| 2017 | Yamaha FZ-10 |
If you have a 2025 or later R1M, contact us before ordering and we will confirm it with Puig.
